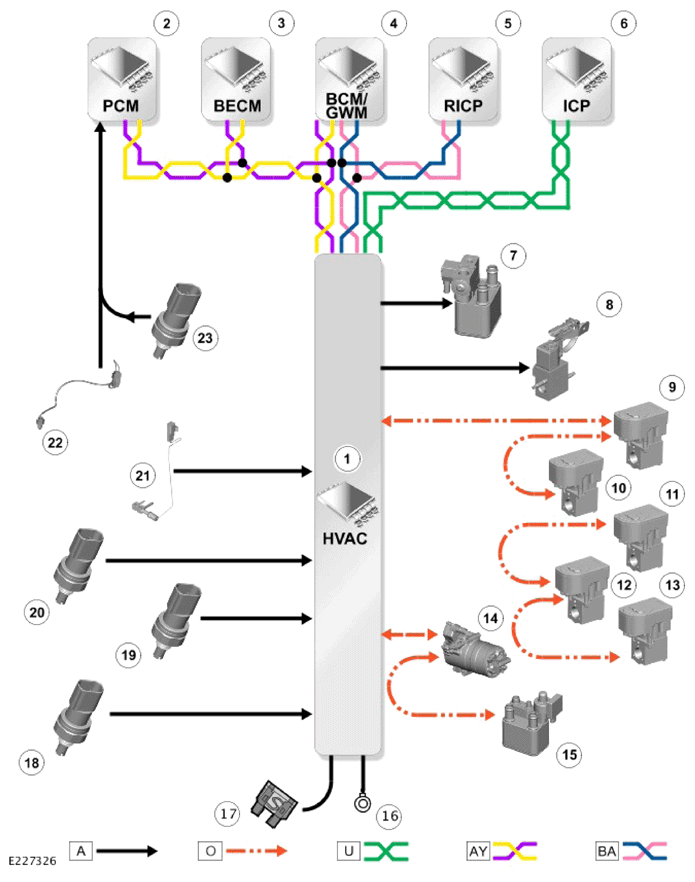

Control Diagram - 3 Of 3 - Air Conditioning
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN): U = PRIVATE CONTROLLER AREA NETWORK (CAN) BUS: AY = HIGH SPEED (HS) CAN POWER MODE ZERO SYSTEMS BUS: BA = HS CAN HUMAN MACHINE INTERFACE (HMI) SYSTEMS BUS .
| ITEM | DESCRIPTION |
|---|---|
| 1 | HVAC control module |
| 2 | Powertrain Control Module (PCM) |
| 3 | Battery Energy Control Module (BECM) |
| 4 | Body Control Module/Gateway Module (BCM/GWM) |
| 5 | Rear Integrated Control Panel (RICP) |
| 6 | Integrated Control Panel (ICP) |
| 7 | Electric Vehicle (EV) battery cooler |
| 8 | Front A/C isolation valve |
| 9 | A/C isolation valve SOV1 |
| 10 | A/C isolation valve SOV2 |
| 11 | A/C isolation valve TXV2 |
| 12 | A/C isolation valve SOV4 |
| 13 | A/C isolation valve SOV5 |
| 14 | Electric Air Conditioning (A/C) compressor |
| 15 | Electric drive cooler |
| 16 | Ground |
| 17 | Power supply |
| 18 | A/C temperature pressure sensor - Compressor inlet |
| 19 | A/C temperature pressure sensor - Compressor outlet |
| 20 | A/C temperature pressure sensor - Electric drive cooler |
| 21 | A/C evaporator temperature sensor |
| 22 | Ambient Air Temperature (AAT) sensor |
| 23 | Air Conditioning (A/C) temperature pressure sensor - Recovery heat exchanger outlet |
