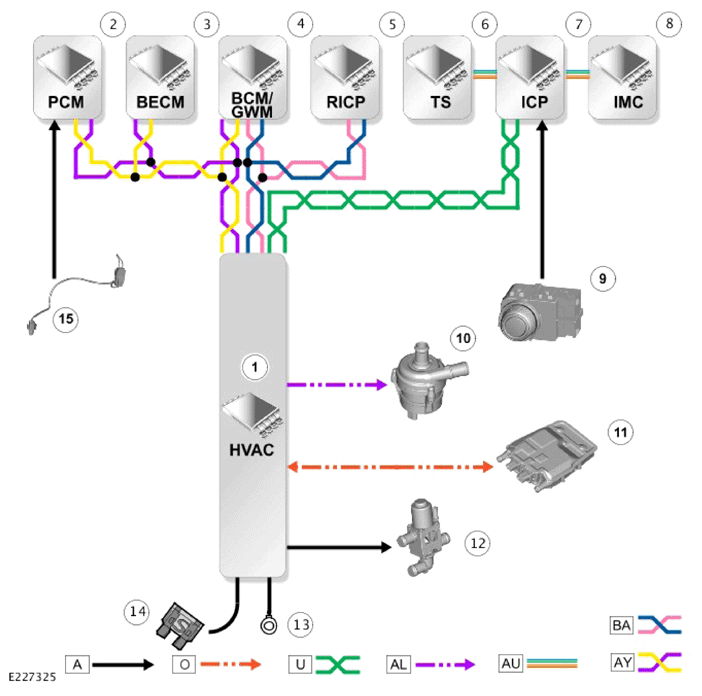

Control Diagram - 2 Of 3
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN): U = PRIVATE CONTROLLER AREA NETWORK (CAN) BUS: AL = PULSE WIDTH MODULATION (PWM): AU = AUTOMOTIVE PIXEL LINK 2 (APIX2) (THESE ARE ONLY INSTALLED WHEN EQUIPPED WITH THE INTEGRATED CONTROL PANEL (ICP) WITH LOWER TOUCHSCREEN (TS)): AY = HIGH SPEED (HS) CAN POWER MODE ZERO SYSTEMS BUS: BA = HS CAN HUMAN MACHINE INTERFACE (HMI) SYSTEMS BUS .
| ITEM | DESCRIPTION |
|---|---|
| 1 | HVAC control module |
| 2 | Powertrain Control Module (PCM) |
| 3 | Battery Energy Control Module (BECM) |
| 4 | Body Control Module/Gateway Module (BCM/GWM) |
| 5 | Rear Integrated Control Panel (RICP) |
| 6 | Upper Touchscreen |
| 7 | Integrated Control Panel (ICP) |
| 8 | Infotainment Master Controller (IMC) |
| 9 | Audio volume control switch |
| 10 | Climate control coolant pump |
| 11 | High Voltage (HV) interior heater |
| 12 | Climate control changeover valve |
| 13 | Ground |
| 14 | Power supply |
| 15 | Ambient Air Temperature (AAT) sensor |
