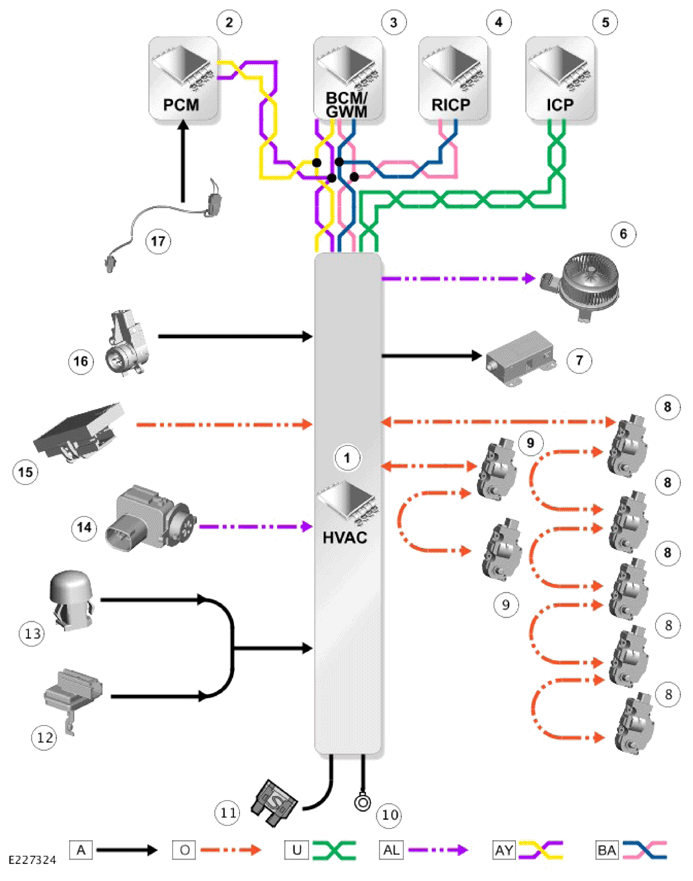

Control Diagram - 1 Of 3
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN): U = PRIVATE CONTROLLER AREA NETWORK (CAN) BUS: AL = PULSE WIDTH MODULATION (PWM): AY = HIGH SPEED (HS) CAN POWER MODE ZERO SYSTEMS BUS: BA = HS CAN HUMAN MACHINE INTERFACE (HMI) SYSTEMS BUS .
| ITEM | DESCRIPTION |
|---|---|
| 1 | HVAC control module |
| 2 | Powertrain Control Module (PCM) |
| 3 | Body Control Module/Gateway Module (BCM/GWM) |
| 4 | Rear Integrated Control Panel (RICP) |
| 5 | Integrated Control Panel (ICP) |
| 6 | Blower |
| 7 | Air ionizer |
| 8 | Recirculation motor, temperature blend motor and distribution motor (quantity 12) |
| 9 | Temperature blend motor (quantity 2) (4 zone only) |
| 10 | Ground |
| 11 | Power supply |
| 12 | Duct air temperature sensor (quantity 4 for 2 zone and quantity 8 for 4 zone) |
| 13 | Sunload sensor |
| 14 | Pollution sensor |
| 15 | Humidity sensor |
| 16 | In-vehicle temperature sensor |
| 17 | Ambient Air Temperature (AAT) sensor |
