Component Location - 4 Of 5 - Climate Control Assembly
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Right Hand Drive (RHD) vehicle is shown below, Left Hand Drive (LHD) vehicle is similar.
- 4 zone is shown below, 2 zone is similar.

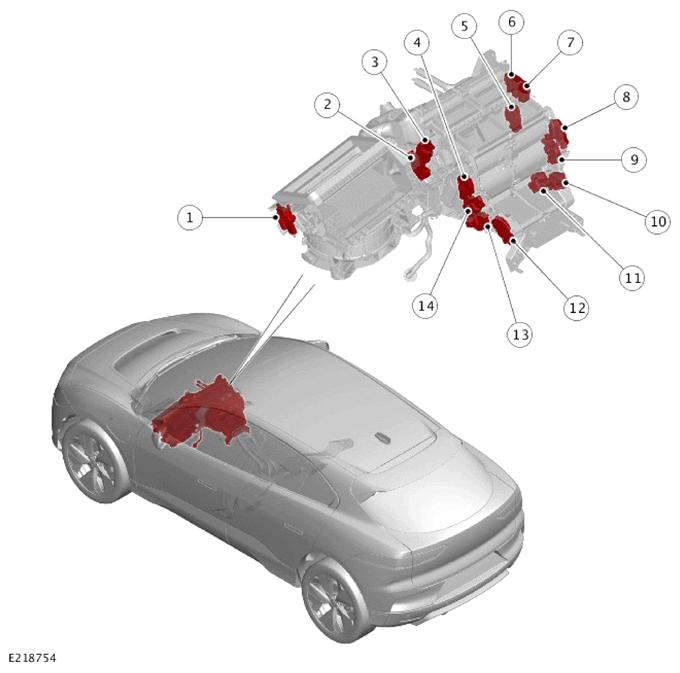

| ITEM | DESCRIPTION |
|---|---|
| 1 | Recirculation motor |
| 2 | Front left temperature blend motor |
| 3 | Front left feet distribution motor |
| 4 | Front left face distribution motor |
| 5 | Front right temperature blend motor |
| 6 | Defrost distribution motor |
| 7 | Front right feet distribution motor |
| 8 | Front right face distribution motor |
| 9 | Rear right temperature blend motor (4 zone only) |
| 10 | Rear right face distribution motor |
| 11 | Rear right foot distribution motor |
| 12 | Rear left face distribution motor |
| 13 | Rear left foot distribution motor |
| 14 | Rear left temperature blend motor (4 zone only) |
