Component Location - 2 Of 5

WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

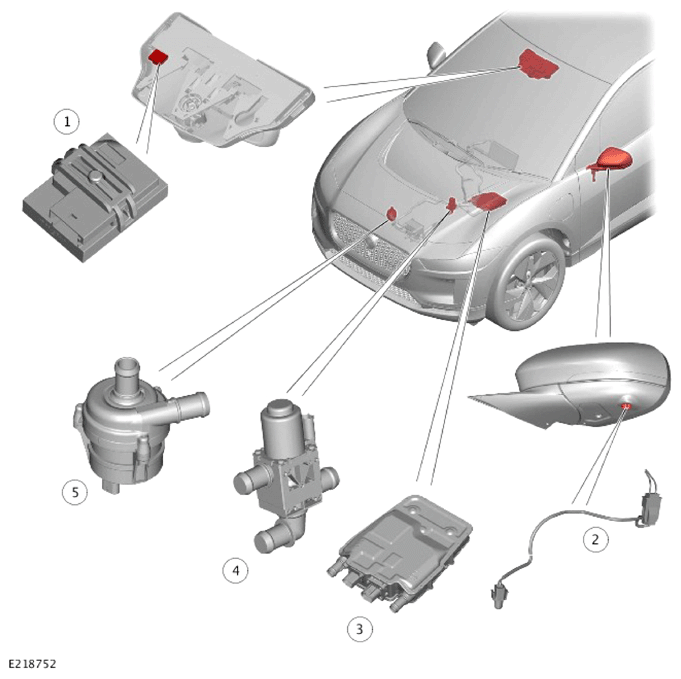

G13922289Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Humidity sensor
2 Ambient Air Temperature (AAT) sensor
3 High Voltage (HV) interior heater
4 Climate control changeover valve
5 Climate control coolant pump
