Component Location - 1 Of 5
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

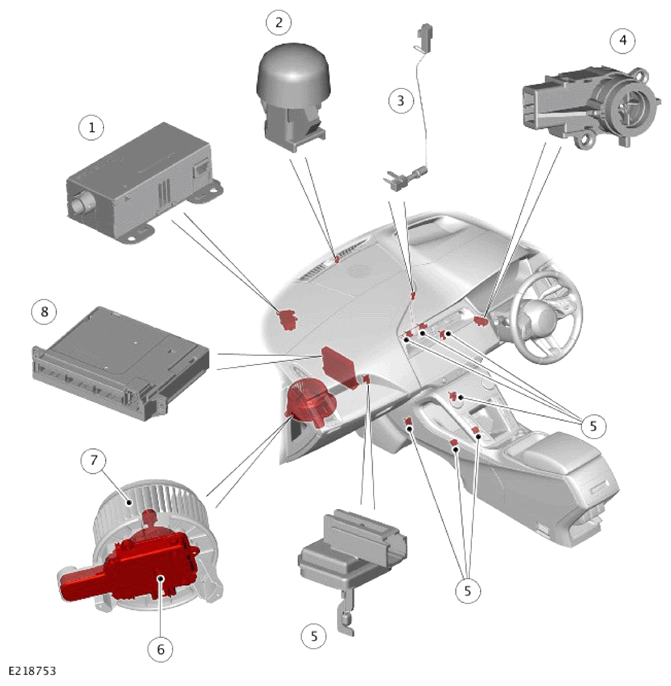

Right Hand Drive (RHD) vehicle is shown below, Left Hand Drive (LHD) vehicle is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Air ionizer |
| 2 | Sunload sensor |
| 3 | Air Conditioning (A/C) evaporator temperature sensor |
| 4 | In-vehicle temperature sensor |
| 5 | Duct air temperature sensor (quantity 4 for 2 zone and quantity 8 for 4 zone) |
| 6 | Blower control module |
| 7 | Blower |
| 8 | HVAC control module |
