Refrigerant Pipes, Hoses And Valve Blocks
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

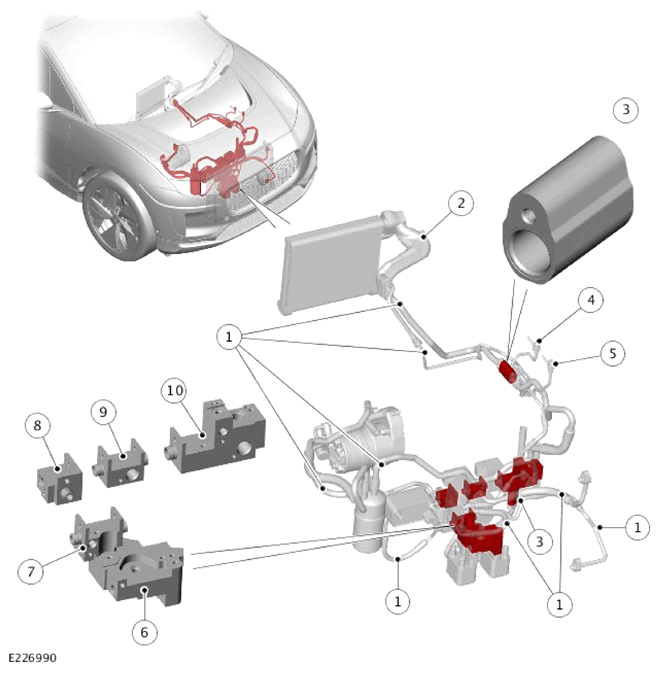

| ITEM | DESCRIPTION |
|---|---|
| 1 | Refrigerant pipes and hoses |
| 2 | Refrigerant pipes inside the climate control assembly |
| 3 | Check valve (quantity 2) |
| 4 | Air Conditioning (A/C) service connection Low Pressure (LP) |
| 5 | A/C service connection High Pressure (HP) |
| 6 | Valve block 5 |
| 7 | Valve block 4 |
| 8 | Valve block 1 |
| 9 | Valve block 2 |
| 10 | Valve block 3 |
The refrigerant pipes and hoses along with the 5 valve blocks and the 2 check valves connect all the Air Conditioning (A/C) system components together. The hoses, pipes and valve blocks contain the refrigerant in the A/C system and enables the refrigerant to flow to the following components when required:
- The electric A/C compressor
- The recovery heat exchanger
- The A/C isolation valves (5 off)
- The front A/C isolation valves
- The A/C orifice tube for the evaporator
- The evaporator in the climate control assembly
- The A/C accumulator
- The A/C silencer
- The Electric Vehicle (EV) battery cooler
- The electric drive cooler
- The climate control indirect condenser.
The check valves allow the flow of refrigerant in only 1 direction. They stop the flow of refrigerant in the other direction.
The refrigerant pipes also incorporate the Low Pressure (LP) and High Pressure (HP) A/C refrigerant service connections.
