Electric Vehicle Battery Cooler

WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The Air Conditioning (A/C) system provides the function of cooling the Electric Vehicle (EV) battery alongside conditioning the passenger compartment. In some situations, the EV battery cooling function may be prioritized over passenger compartment conditioning.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

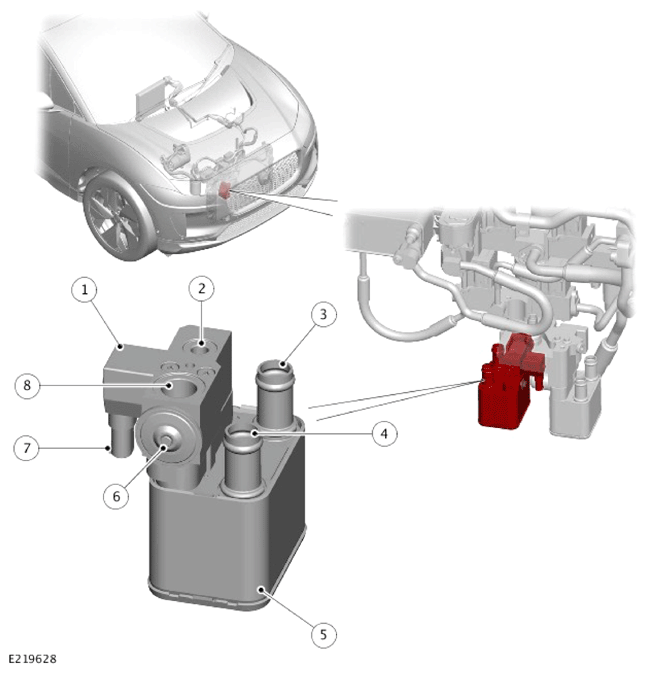

ITEM	DESCRIPTION
1	Isolation valve
2	High Pressure (HP) refrigerant connection
3	Hose connection - Electric Vehicle (EV) battery coolant inlet
4	Hose connection - EV battery coolant outlet
5	EV battery cooler
6	Thermostatic Expansion Valve (TXV)
7	Isolation valve electrical connection
8	Low Pressure (LP) refrigerant connection

The Electric Vehicle (EV) battery cooler is located in the front compartment.

The EV battery cooler uses the refrigerant from the Air Conditioning (A/C) system to cool the EV battery coolant in the EV battery temperature control system. The EV battery cooler incorporates a Thermostatic Expansion Valve (TXV) to control the flow of refrigerant through it.

The HVAC control module controls the EV battery cooler isolation valve. The EV battery cooler isolation valve is hardwired to the HVAC. The isolation valve is normally closed and is opened by a signal from the HVAC.

The EV battery cooler has a 2-pin wiring harness connector on the isolation valve. The 2-pin wiring harness connector has the following connections:

A 12V signal from the HVAC.
A ground connection.

The flow of refrigerant to the EV battery cooler is controlled by the HVAC operating the required A/C isolation valves.

For additional information, Refer to: ELECTRIC VEHICLE BATTERY TEMPERATURE CONTROL .

For additional information, refer to: CONTROL COMPONENTS .
