Climate Control Indirect Condenser
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

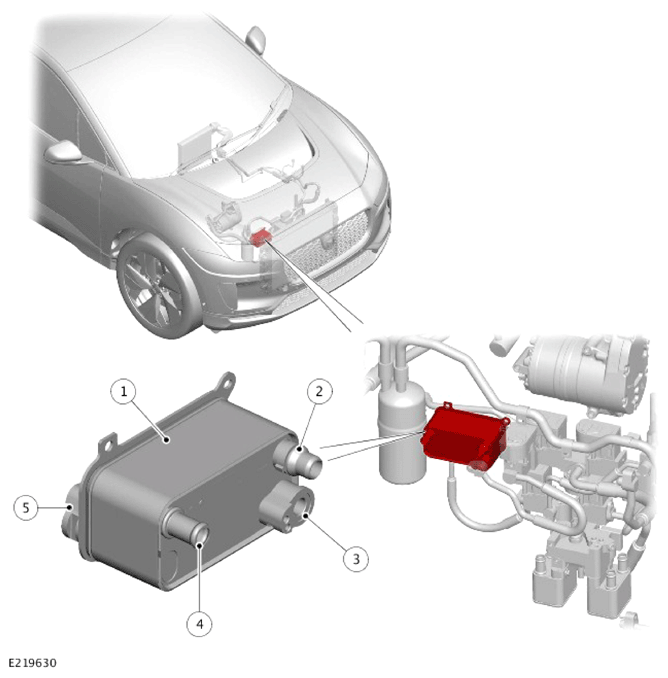

| ITEM | DESCRIPTION |
|---|---|
| 1 | Climate control indirect condenser |
| 2 | Hose connection - Coolant outlet |
| 3 | Refrigerant inlet pipe connection |
| 4 | Hose connection - Coolant inlet |
| 5 | Refrigerant outlet pipe connection |
The climate control indirect condenser is located in the front compartment.
The climate control indirect condenser is a heat exchanger to move heat from the refrigerant in the Air Conditioning (A/C) system to the climate control coolant. This heat in the climate control coolant uses the heater core in the climate control assembly to heat the passenger compartment.
For additional information, refer to: HEATING AND VENTILATION .
The flow of refrigerant to the climate control indirect condenser is controlled by the HVAC control module by operating the required A/C isolation valves.
For additional information, refer to: CONTROL COMPONENTS .
