Air Conditioning Orifice Tube
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

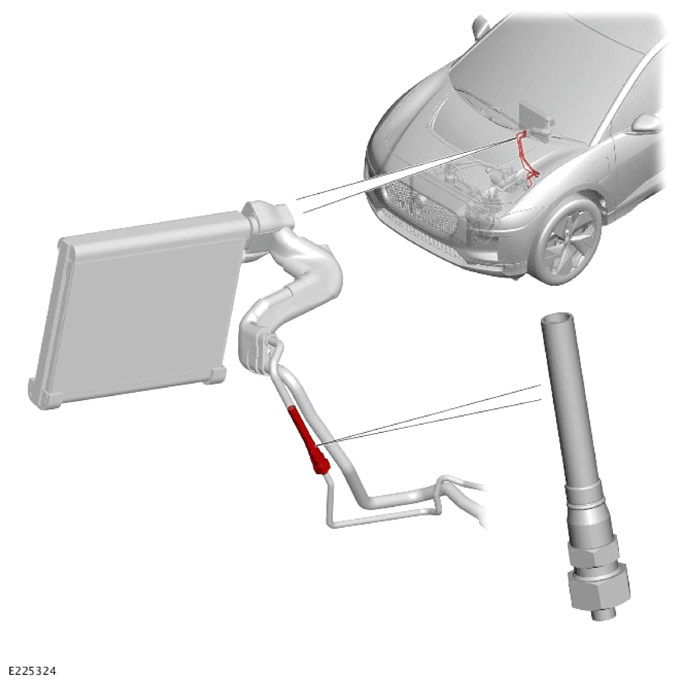

The Air Conditioning (A/C) orifice tube is located in the High Pressure (HP) pipes to the evaporator in the climate control assembly.
The A/C orifice tube internally regulates the flow of refrigerant through the evaporator in the climate control assembly.
NOTE:
The Air Conditioning (A/C) orifice tube has a filter within the component. The filter in the A/C orifice tube is to be cleaned if any debris is found in the A/C system. This is to be done by an A/C trained technician only.
