Component Location - 2 Of 2
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.

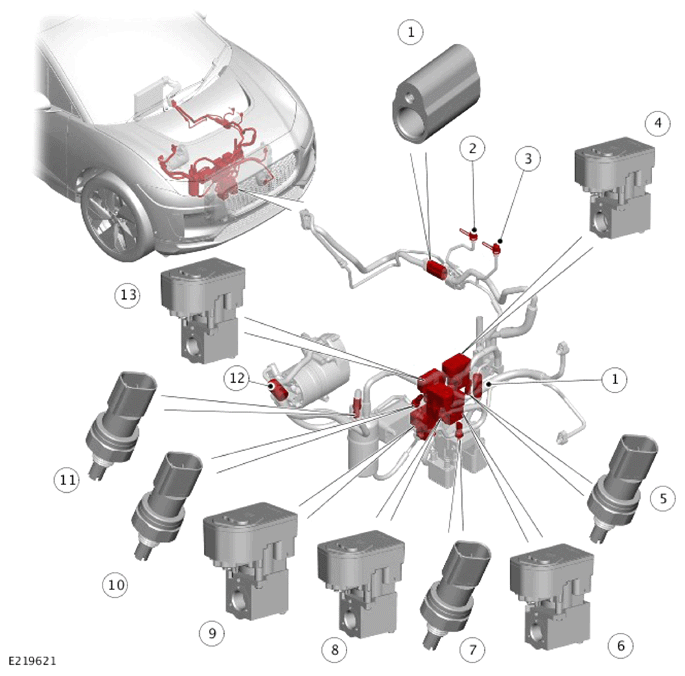

| ITEM | DESCRIPTION |
|---|---|
| 1 | Air Conditioning (A/C) check valve (quantity 2) |
| 2 | A/C service connection Low Pressure (LP) |
| 3 | A/C service connection High Pressure (HP) |
| 4 | A/C isolation valve SOV5 |
| 5 | A/C temperature pressure sensor - Recovery heat exchanger outlet |
| 6 | A/C isolation valve EXV2 |
| 7 | A/C temperature pressure sensor - Electric drive cooler |
| 8 | A/C isolation valve SOV1 |
| 9 | A/C isolation valve SOV4 |
| 10 | A/C temperature pressure sensor - Electric A/C compressor outlet |
| 11 | A/C temperature pressure sensor - Electric A/C compressor inlet |
| 12 | A/C silencer |
| 13 | A/C isolation valve SOV2 |
