Component Location - 1 Of 2
WARNING: This page is about a different car, the 2021 Jaguar I-Pace, 2020 Jaguar I-Pace, and 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not do any work on the electric High Voltage (HV) system until the HA
system on the vehicle is powered down.

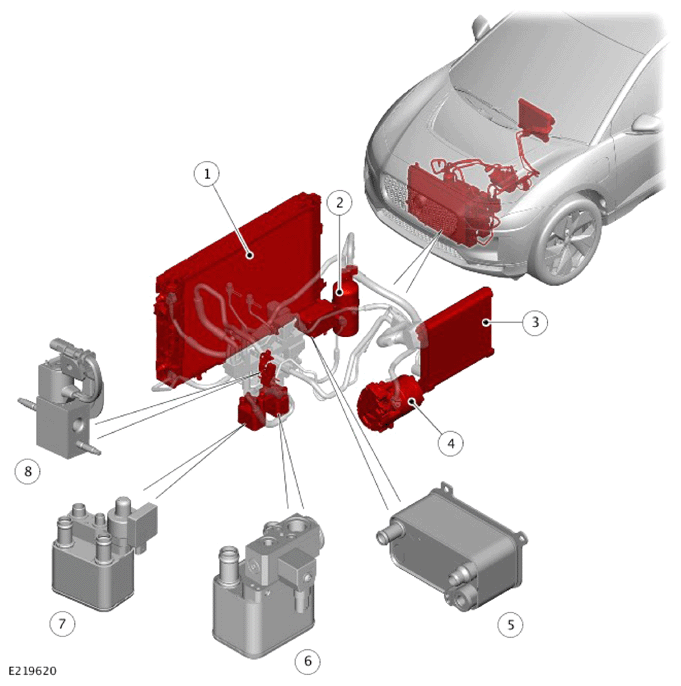

| ITEM | DESCRIPTION |
|---|---|
| 1 | Recovery heat exchanger |
| 2 | Air Conditioning (A/C) accumulator |
| 3 | Evaporator |
| 4 | Electric A/C compressor |
| 5 | Climate control indirect condenser |
| 6 | Electric Vehicle (EV) battery cooler |
| 7 | Electric drive cooler |
| 8 | Front A/C isolation valve |
