Torque specification
NOTE:
Numbers with a green background are a single use component.

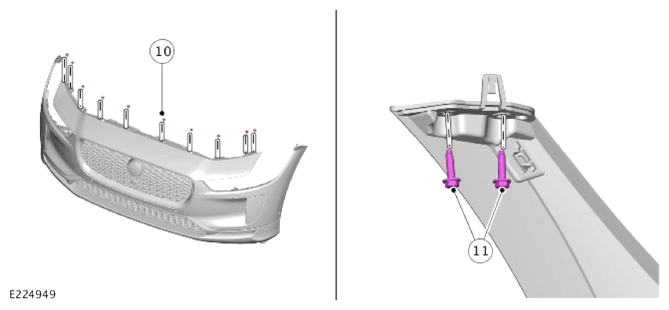

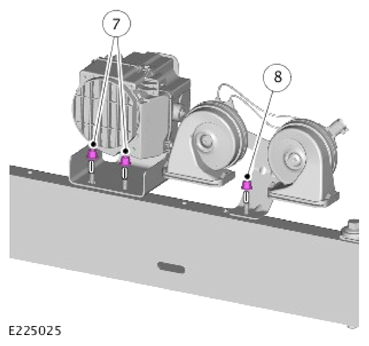

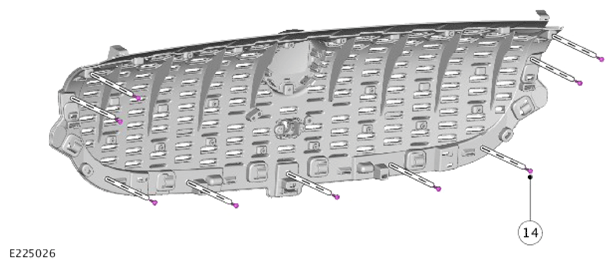

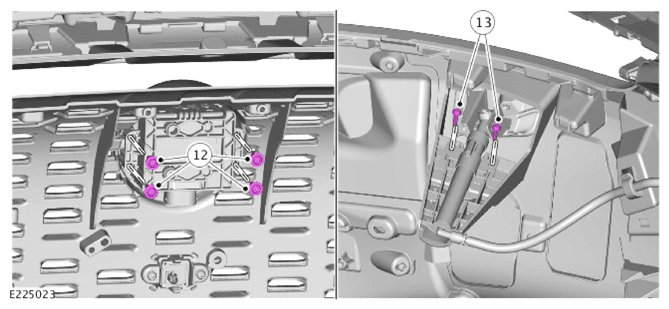

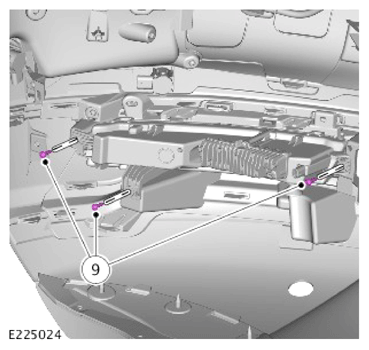

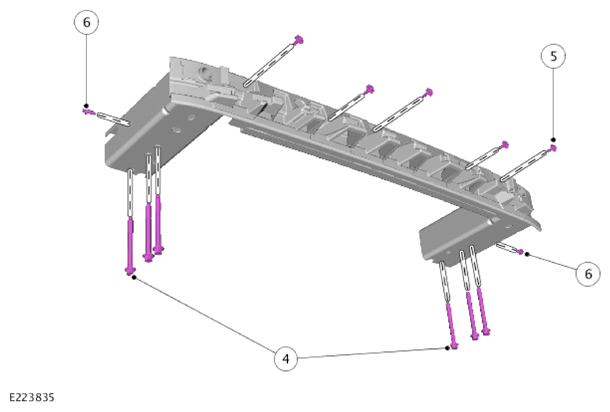

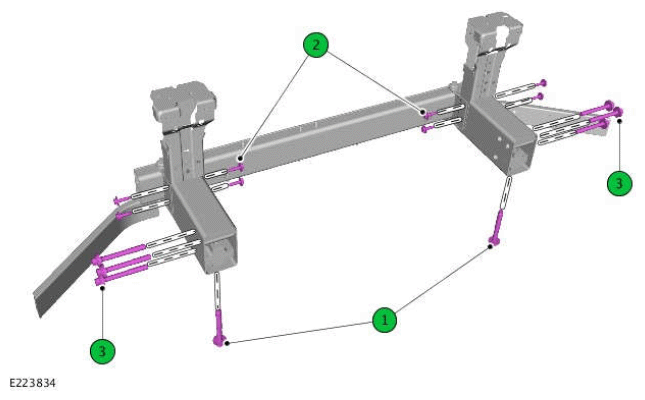

COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
TORQUE SPECIFICATION
| DESCRIPTION | NM/DEGREES | LB-FT/DEGREES | LB-IN/DEGREES | |||
|---|---|---|---|---|---|---|
| 1 | Front subframe to body bolts | Stage 1: 100 | Stage 2: 240° | Stage 1: 74 | Stage 2: 240° | - |
| 2 | Front armature to body bolts (M8) | 30 | 22 | - | ||
| 3 | Front armature to body bolts | 100 | 74 | |||
| 4 | Rear armature to body bolts (M8) | 24 | 18 | - | ||
| 5 | Rear armature to body bolts (M12) | 110 | 81 | - | ||
| 6 | Rear armature bracket bolts | 10 | 7 | - | ||
| 7 | Exterior synthetic sounder nuts | 9 | - | 80 | ||
| 8 | Horn nut | 8 | - | 71 | ||
| 9 | Fog lamp screws | 2 | - | 18 | ||
| 10 | Front bumper upper screws | 1.5 | - | 13 | ||
| 11 | Front bumper outside bolts | 10 | 7 | - | ||
| 12 | Adaptive Speed Control Module (ASCM) screws | 3 | - | 27 | ||
| 13 | Headlamp washer jet screws | 1.5 | - | 13 | ||
| 14 | Radiator grille screws | 3 | - | 27 | ||
