Rear Bumper[G2202024]: Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

CAUTION: Use a suitable plastic trim tool to release the component.

NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

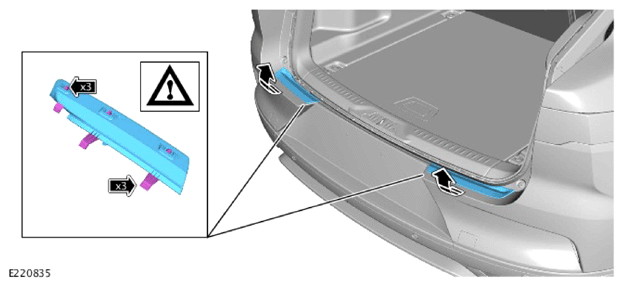

- Release the tailgate weatherstrip.
- Remove the 3 clips.

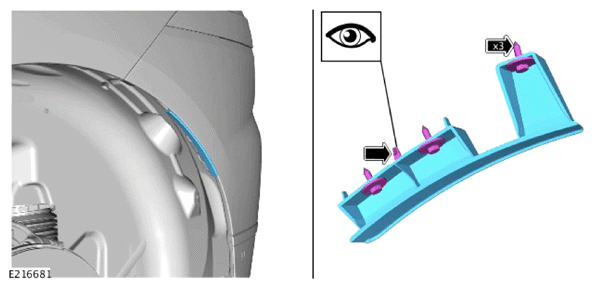

- Remove the quarter panel finisher.
CAUTION:
- Make sure to protect the paintwork.
- Use a suitable plastic trim tool to release the component.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the upper moldings.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

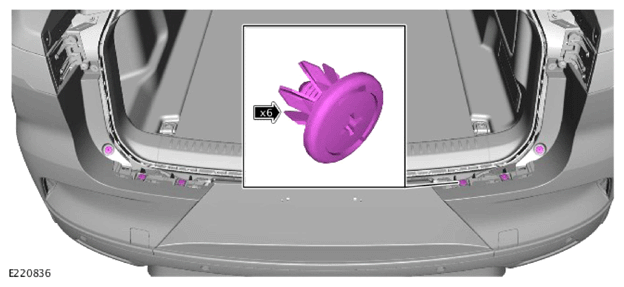

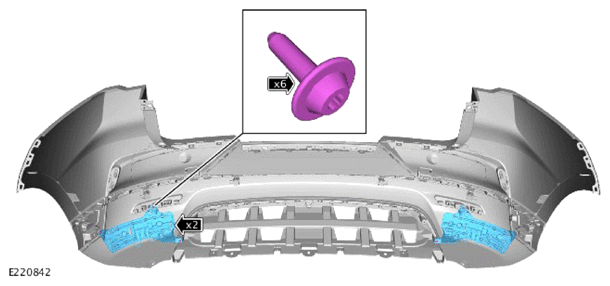

Remove the 6 fasteners.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

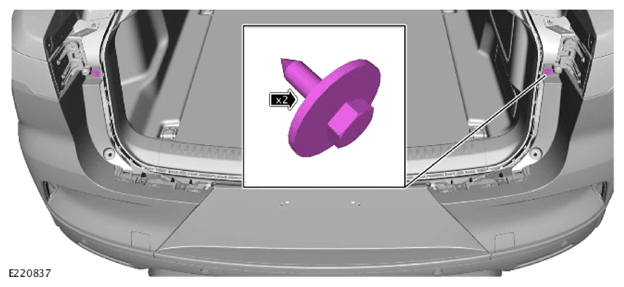

Remove the 2 screws.
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
NOTE: Repeat the step for the other side.

Remove the rear wheel and tire.

Refer to: WHEEL AND TIRE .
NOTE:
- Repeat the step for the other side.
- Take extra care when releasing the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

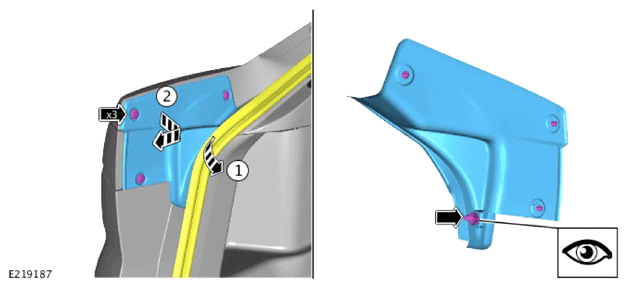

- Remove the 3 screws.
- Release the clip.
- Remove the molding.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

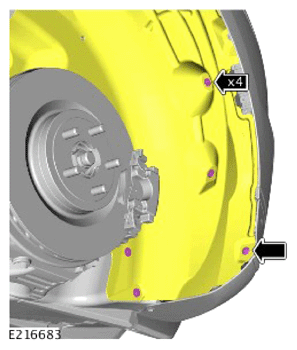

- Remove the 4 bolts.
- Release the rear section of the wheel arch liner.
- Remove the screw.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

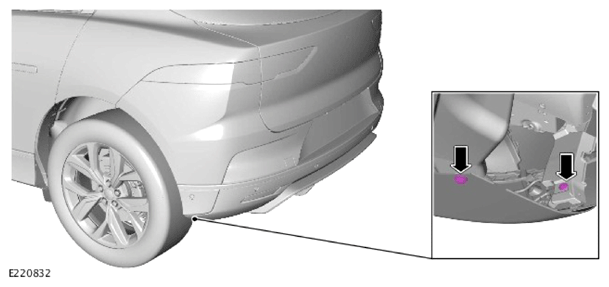

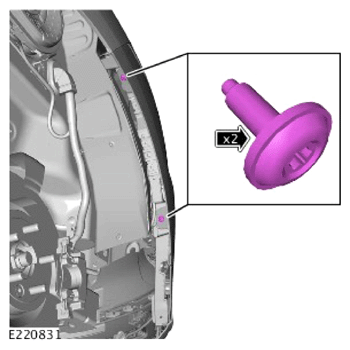

Remove the 2 screws.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Remove the screw.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

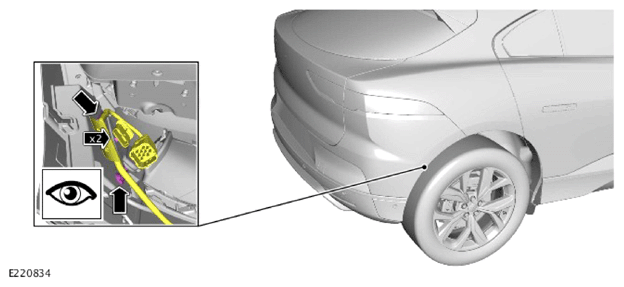

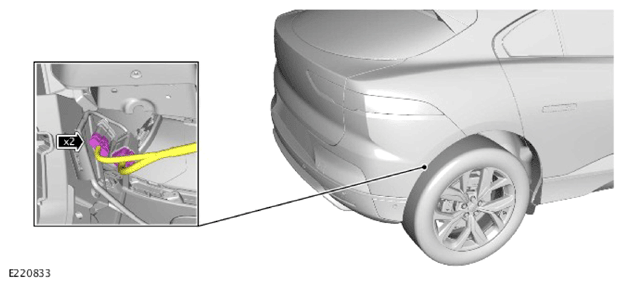

Disconnect the 2 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

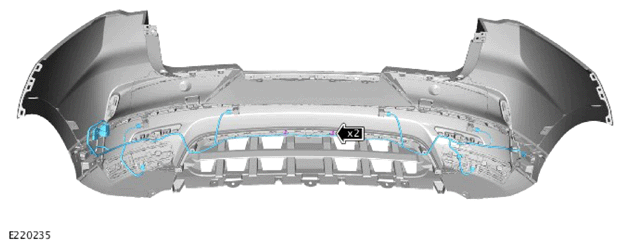

Release the 4 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

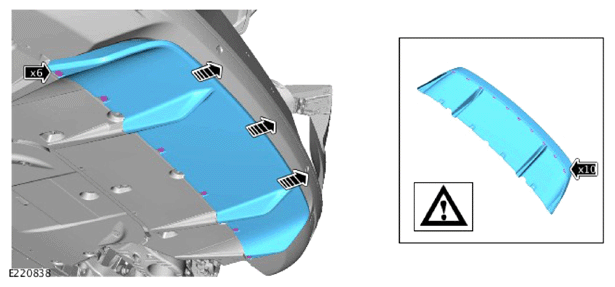

- Remove the 6 bolts.
- Remove the air deflector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

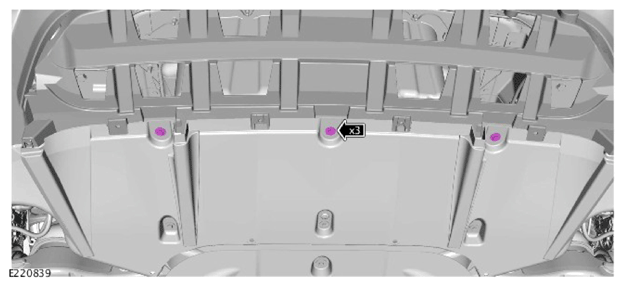

Remove the 3 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

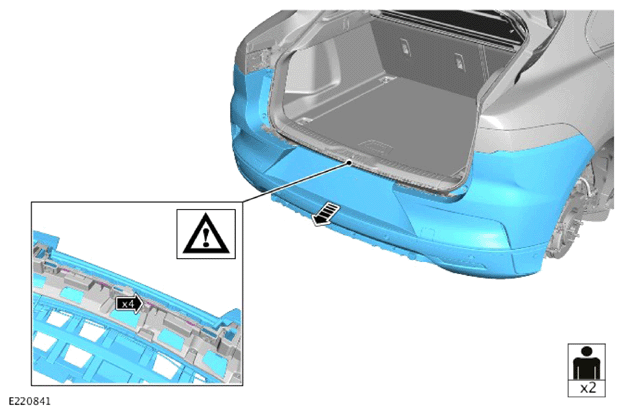

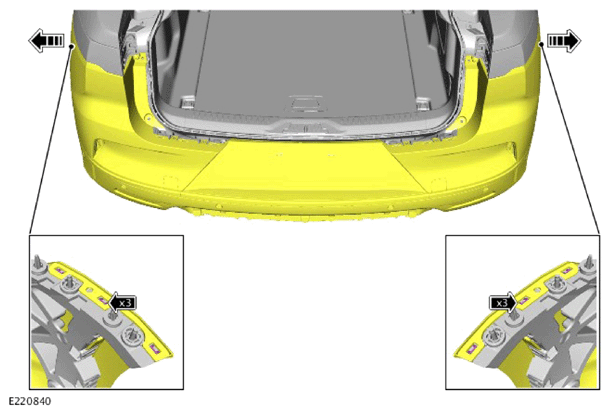

Release the rear bumper on the both sides.
NOTE: Take extra care when releasing the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the rear bumper.
NOTE: Only do the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

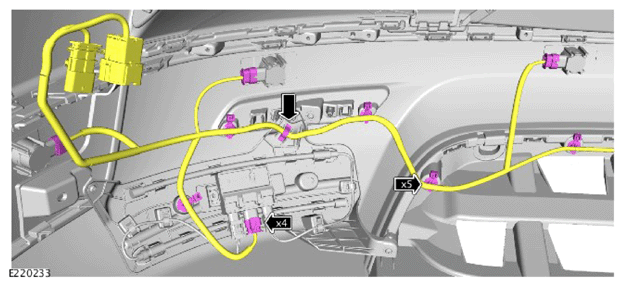

- Disconnect the 4 electrical connectors.
- Release the rear bumper wiring harness on the right side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

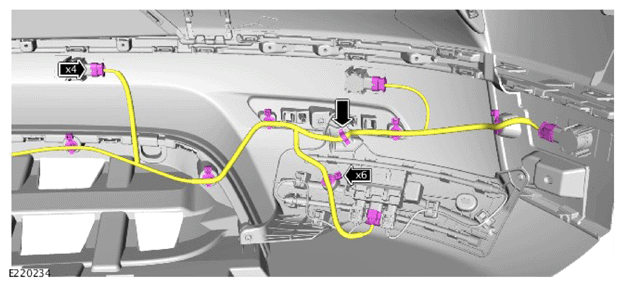

- Disconnect the 4 electrical connectors.
- Release the rear bumper harness wiring on the left side.
NOTE: Take extra care when releasing the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the rear bumper wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 6 screws.
- Remove the hands-free tailgate sensor assemblies.
NOTE: Take extra care when releasing the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

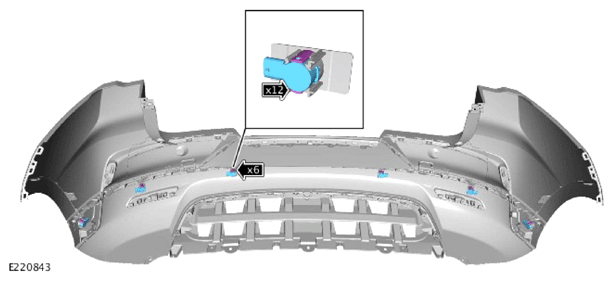

- Remove the 4 parking aid sensors.
- Remove the 2 park assist sensors.
NOTE: Take extra care when releasing the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

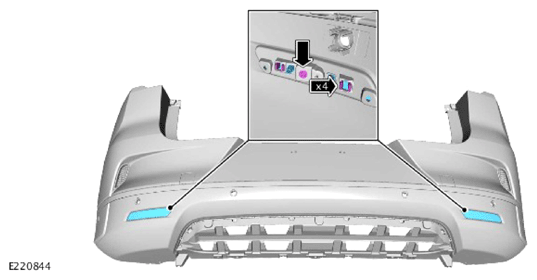

- Remove the 2 screws.
- Remove the rear bumper reflectors.
