Front Bumper [G2202023]: Removal

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Remove the front compartment right trim panel.

    Refer to: FRONT COMPARTMENT RIGHT TRIM PANEL .

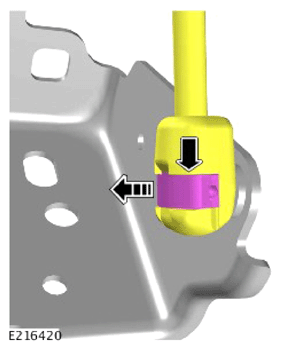

  2. WARNING: Make sure that the hood is sufficiently supported before the gas strut is disconnected.
    G13944720Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the strut.

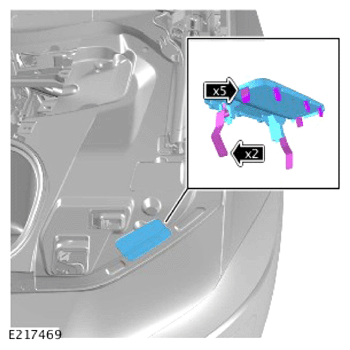

  3. G13944721Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 5 clips.
    • Remove small trim panel with 2 safety clips.

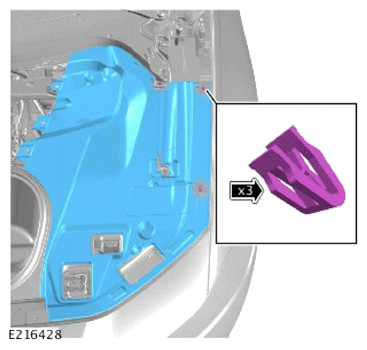

  4. G13944722Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 3 clips.
    • Remove the trim panel.

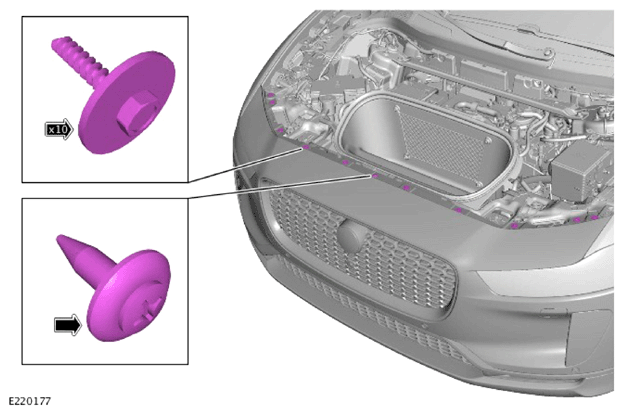

  5. G13944723Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 10 screws.
    • Remove the clip.
  6. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING .

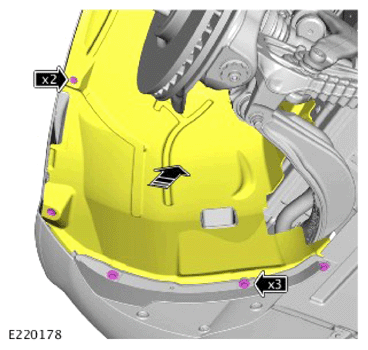

  7. NOTE: Repeat the step for the other side.
    G13944724Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts.
    • Remove the 2 clips.
    • Release the front section of the wheel arch liner.
  8. NOTE: Right side only.

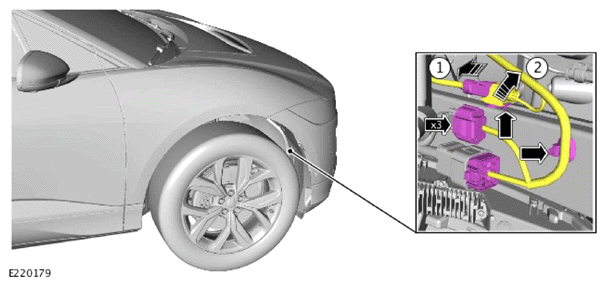

    G13944725Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 3 electrical connectors.
    • Release the clip.
    • Release the electrical connector.

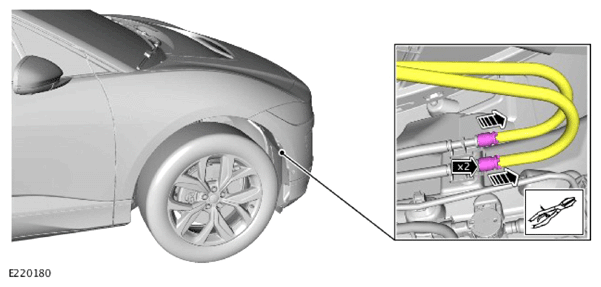

  9. CAUTION: Clamp the hoses to minimize fluid loss.
    NOTE: Right side only.
    G13944726Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the 2 washer jet hoses.

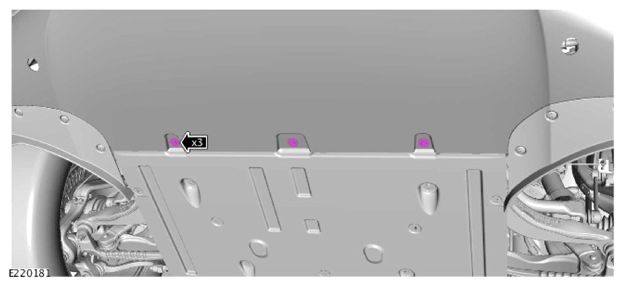

  10. G13944727Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 screws.

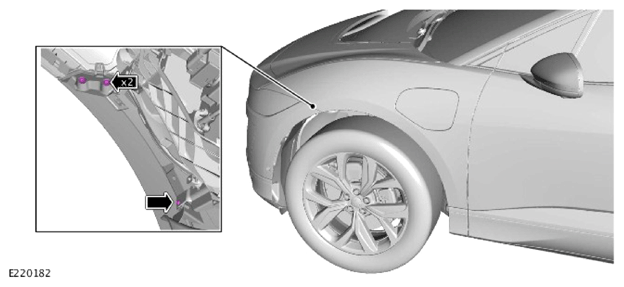

  11. NOTE: Repeat the step for the other side.
    G13944728Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the screw.

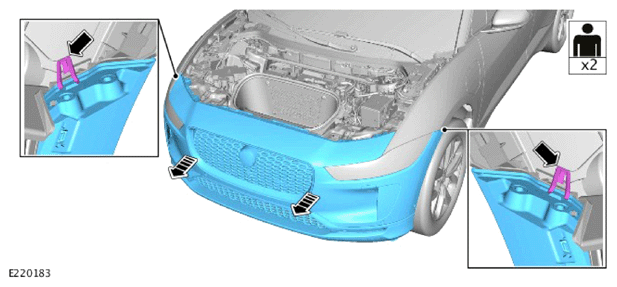

  12. CAUTION: Make sure that the vehicle paintwork is protected.
    NOTE: Take extra care when releasing the clips.
    G13944729Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the front bumper.

  13. NOTE: Only do the following step(s) if a new component is to be installed.

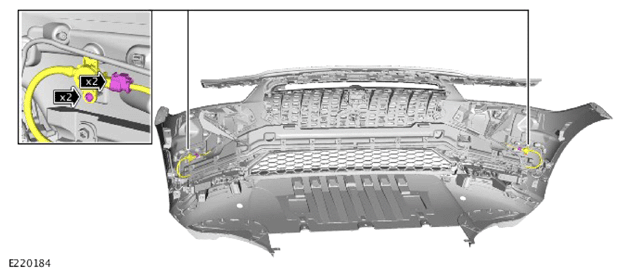

    G13944730Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 electrical connectors.
    • Remove the 2 screws.
    • Release the 2 pedestrian protection system pressure sensors.

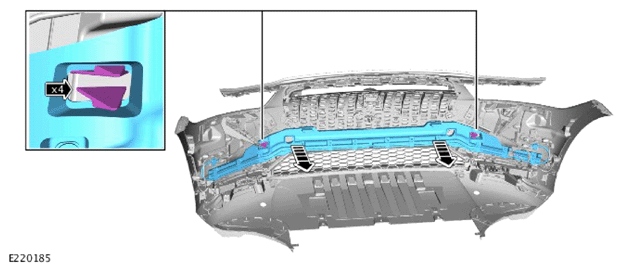

  14. G13944731Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 4 clips.
    • Remove the pedestrian protection system bracket.

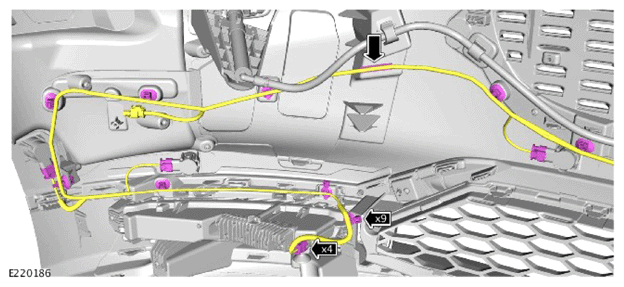

  15. G13944732Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 4 electrical connectors.
    • Release the 10 clips.
    • Release the front bumper harness on the left side.

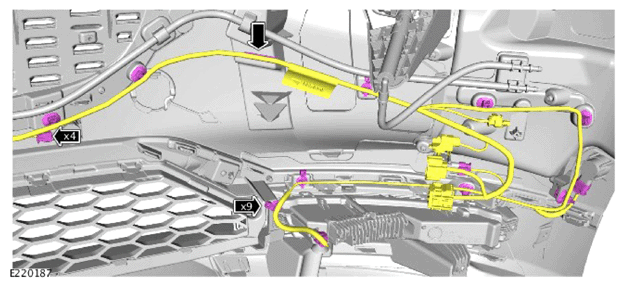

  16. G13944733Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 4 electrical connectors.
    • Release the 10 clips.
    • Release the front bumper harness on the right side.

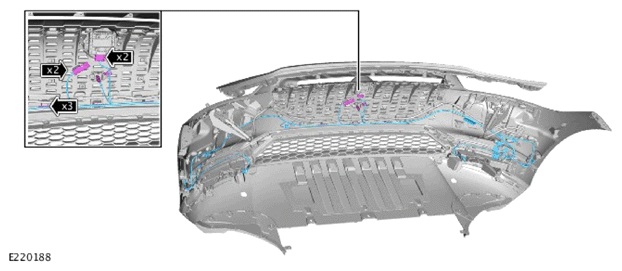

  17. G13944734Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 electrical connectors.
    • Release the 5 clips.
    • Remove the front bumper harness.

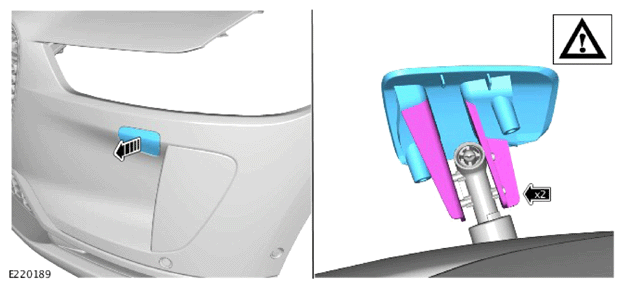

  18. NOTE:
    • Repeat the step for the other side.
    • Take extra care when releasing the clips.
    G13944735Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the washer jet cover.

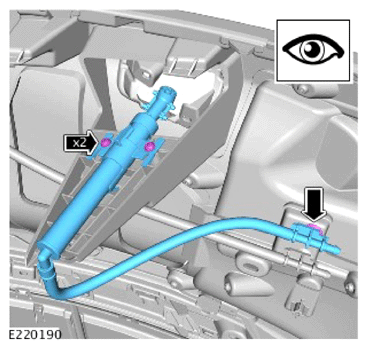

  19. G13944736Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 screws.
    • Release the clip.
    • Remove the right side washer jet.

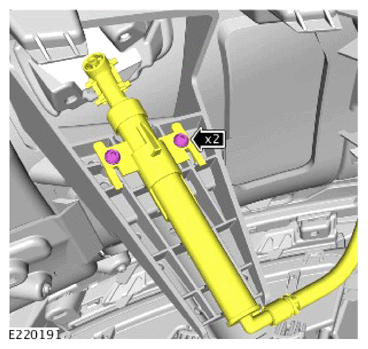

  20. G13944737Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 screws.
    • Release the left side washer jet.

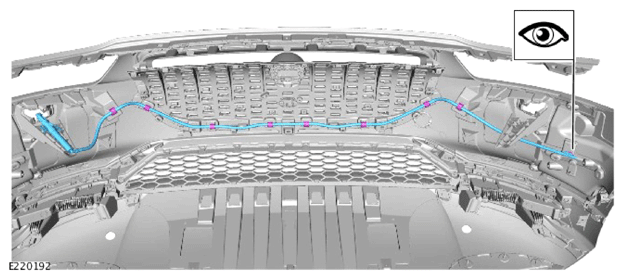

  21. G13944738Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the washer jet hose from the clips.
    • Remove the washer hose with the washer jet.
  22. NOTE: Repeat the step for the other side.

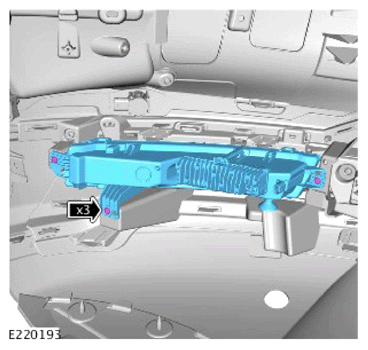

    G13944739Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 screws.
    • Remove the front fog lamp.

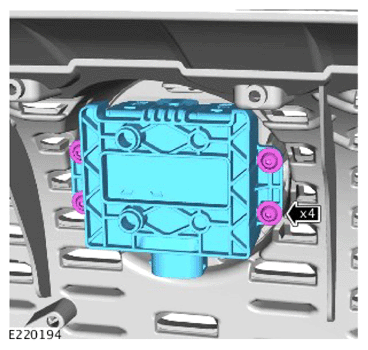

  23. G13944740Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 screws.
    • Remove the Adaptive Speed Control Module (ASCM).
  24. NOTE: Take extra care when releasing the clips.

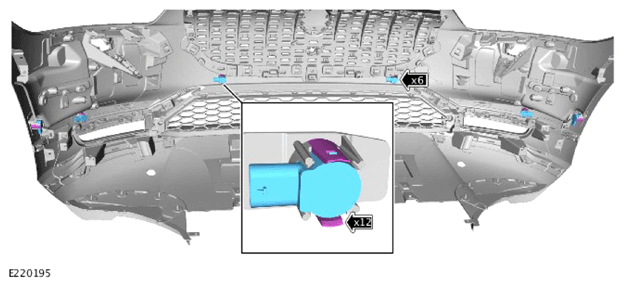

    G13944741Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 parking aid sensors.
    • Remove the 2 park assist sensors.

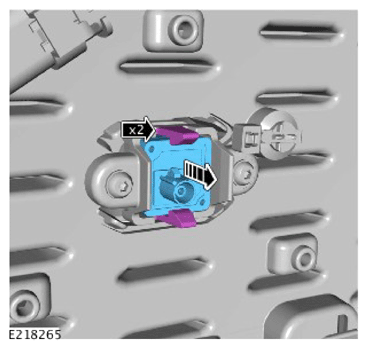

  25. CAUTION: Take extra care not to damage the clips.
    NOTE: Note the orientation of the component prior to removal.
    G13944742Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the front proximity camera.

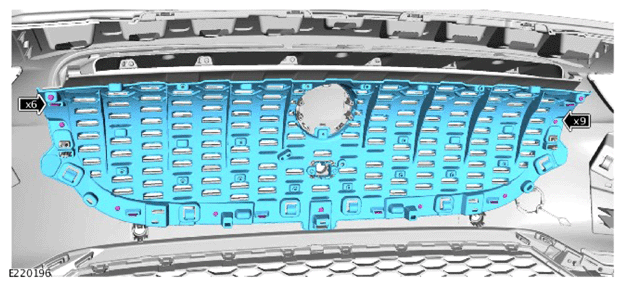

  26. NOTE: Take extra care when releasing the clips.
    G13944743Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 9 screws.
    • Release the 6 clips.
    • Remove the radiator grille support.

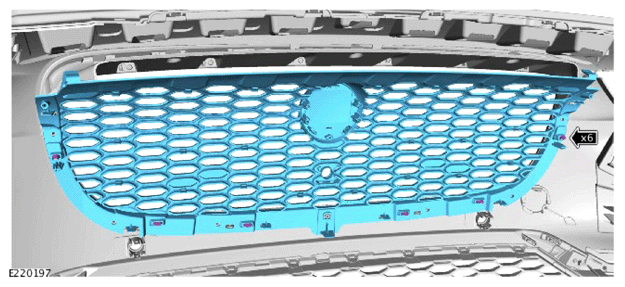

  27. G13944744Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 6 clips.
    • Remove the radiator grille.

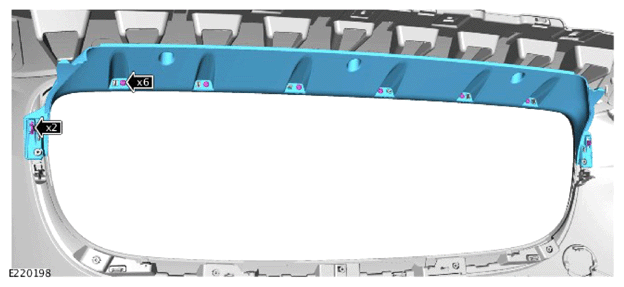

  28. G13944745Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 6 screws.
    • Release the 2 clips.
    • Remove the radiator grille upper molding.
  29. NOTE: Repeat the step for the other side.

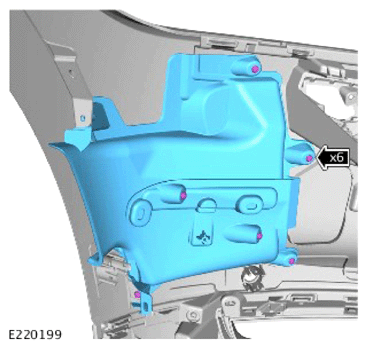

    G13944746Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 6 screws.
    • Remove the outer bracket.
  30. NOTE: Repeat the step for the other side.

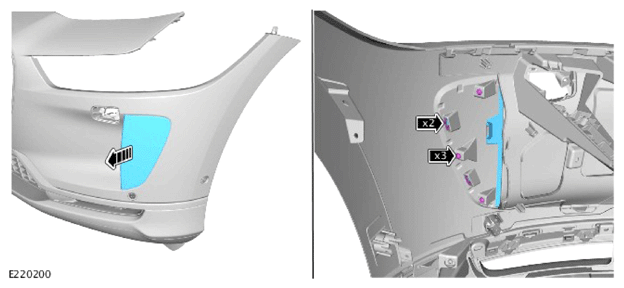

    G13944747Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 screws.
    • Release the 2 clips.
    • Remove the front bumper air intake.

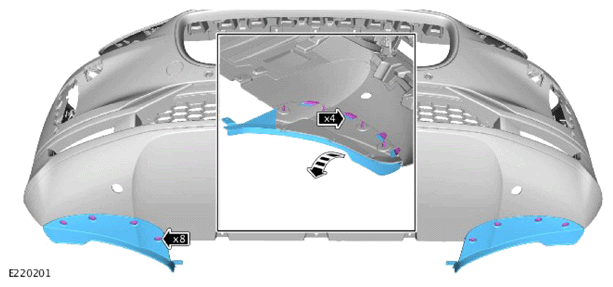

  31. G13944748Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 8 push pins.
    • Remove the air deflector.
