Front Armature [G2202025]: Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
With assistance, remove the front bumper.
Refer to: FRONT BUMPER .

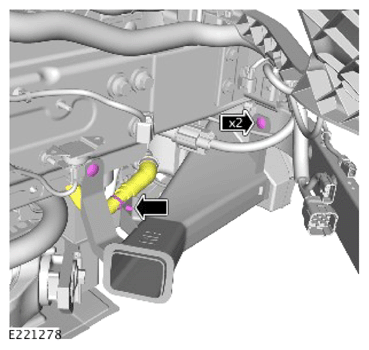

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

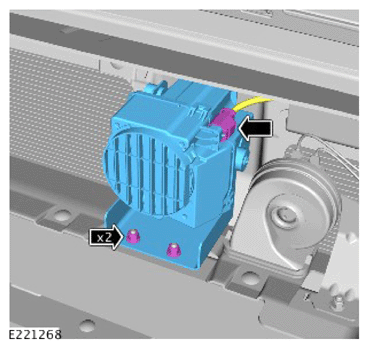

- Disconnect the electrical connector.
- Remove the 2 nuts.
- Remove the exterior synthetic sounder.

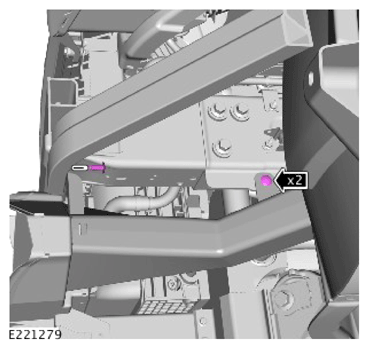

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

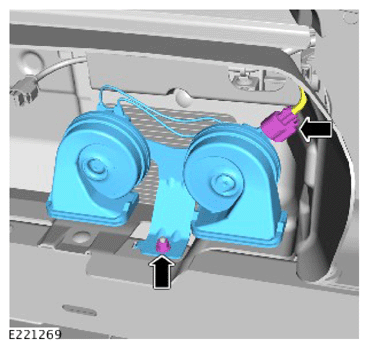

- Disconnect the electrical connector.
- Remove the nut.
- Remove the horn assembly.
CAUTION: Take extra care not to damage the wiring harnesses.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

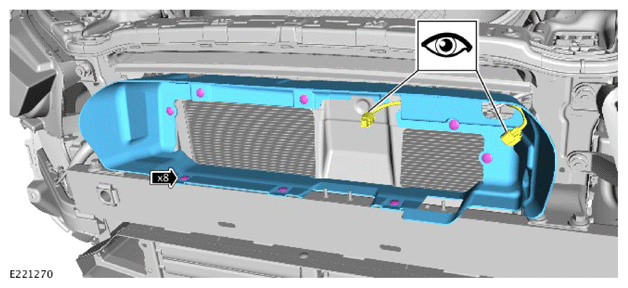

- Remove the 8 clips.
- Remove the Centre air deflector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

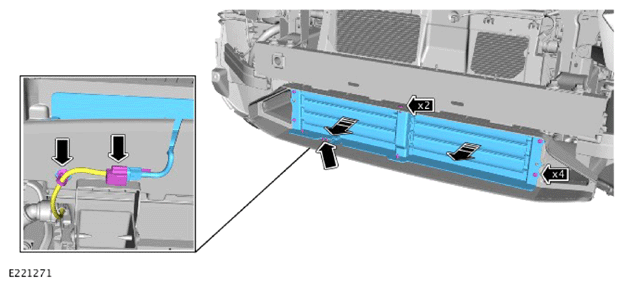

- Disconnect the electrical connector.
- Release the harness from the 2 clips.
- Remove the 2 clips.
- Remove the 4 screws.
- Remove the active grille air shutter.
NOTE: Right side only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 clips.
- Release the wiring harness from the clip.
NOTE: Left side only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 clips.

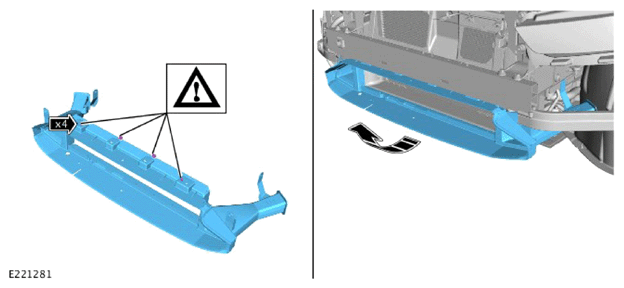

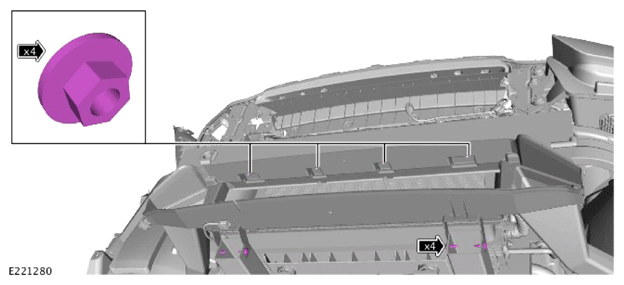

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 nuts.
- Remove the 4 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the lower air deflector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

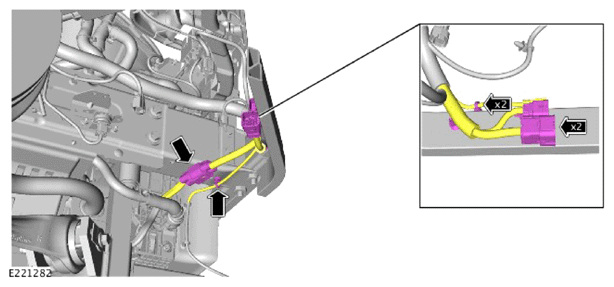

Release the wiring harness from the front armature.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

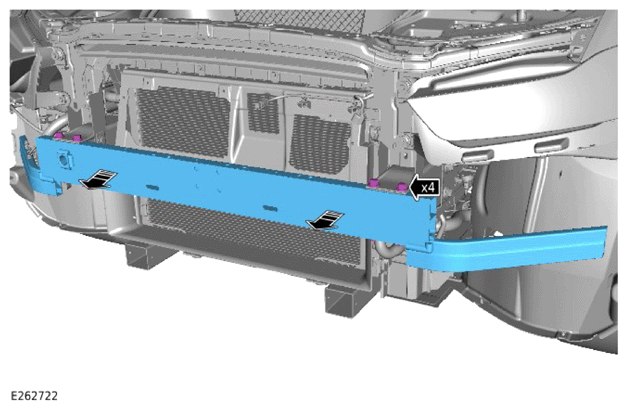

- Remove and discard the 4 bolts.
- With assistance, remove the front armature.
