Remote Function Actuator
NOTE:
Make sure ALL keys are available and placed on the center console within the vehicle prior to running the configure new Remote Function Actuator (RFA).

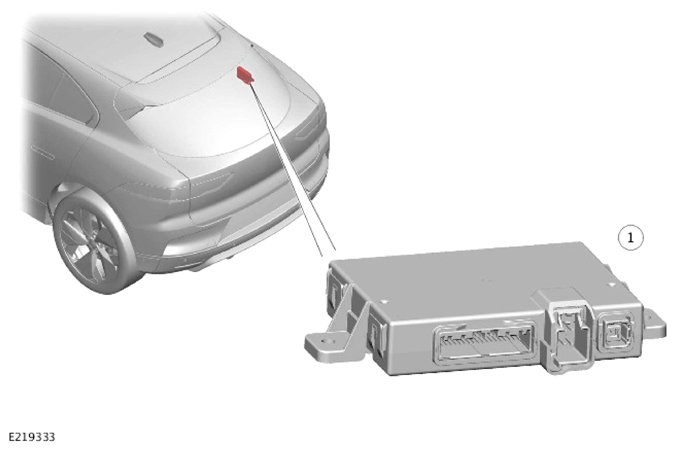

| ITEM | DESCRIPTION |
|---|---|
| 1 | Remote Function Actuator (RFA) |
The Remote Function Actuator (RFA) is located behind the right side trim panel in the luggage compartment. The RFA controls signal transmissions to and from the smart key and provides authorization to allow the vehicle to be entered and started.
A permanent power feed is supplied to the RFA by the Passenger Junction Box (PJB). The RFA has a High Speed (HS) Controller Area Network (CAN) body systems bus connection to the Body Control Module/Gateway Module (BCM/GWM).
The RFA is identical for all vehicle specifications, but differs in the preset frequency that the RFA transmits.
The RFA for each vehicle specification is identified by a suffix change to the base part number as follows:
| PART NO. SUFFIX | OPERATING FREQUENCY | VEHICLE SPECIFICATION |
|---|---|---|
| C# | 315 MHz | Passive Entry Passive Start (PEPS) - North American Specification (NAS), Japan and Korea |
| D# | 433 MHz | PEPS - Europe and ROW |
