Upper Control Arm - V8 S/C 5.0L Petrol (G2263806): Removal

CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for right side components, left side components are similar.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the wheel and tire assembly.
Refer to: WHEEL AND TIRE - V8 S/C 5.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

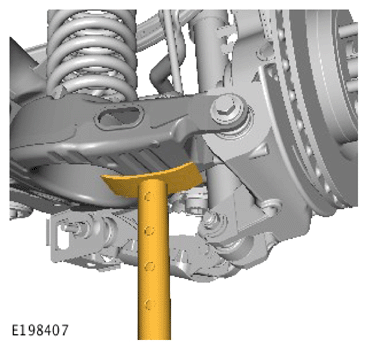

Using the transmission jack support the rear suspension.

General Equipment: Transmission jack
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

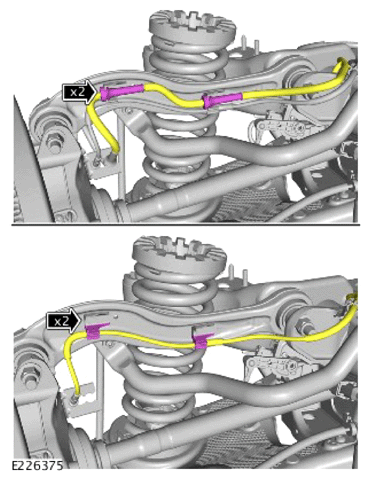

- Release the parking brake wiring harness.
- Release the brake pad wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

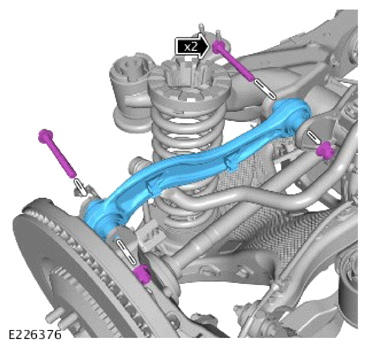

- Remove and discard the upper control arm nuts and bolts.
- Remove the upper control arm.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

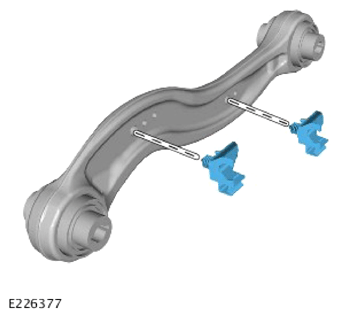

- Remove the wiring harness brackets.
