Upper Control Arm - V8 S/C 5.0L Petrol (G2263806): Notes

64.25.31 UPPER CONTROL ARM - RENEW ALL DERIVATIVES 0.30
G15610640Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
64.25.31.58 UPPER CONTROL ARM - RENEW - SVR ALL DERIVATIVES 0.30
G15610641Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
64.25.32 UPPER CONTROL ARM - VEHICLE SET - RENEW ALL DERIVATIVES 0.60

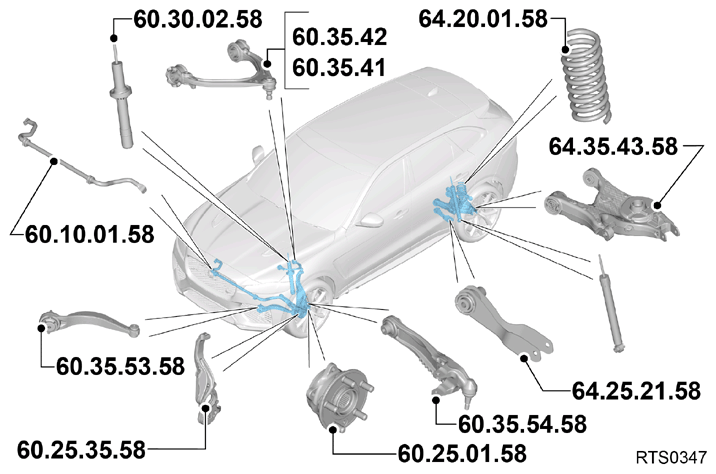

G15610642Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
