Toe Link - Vehicles With: PHEV (G2806793): Removal

WARNING:

If the vehicle has been powered down, do not power up the vehicle until all the bonding points have been tested.
It is the responsibility of the Electric Vehicle Authorised Person (EVAP) to make sure they comply with any local legislation for work on High Voltage (HV).
The approved Personal Protective Equipment (PPE) must be worn where indicated within this procedure and not removed unless indicated within a step. All items of PPE must be checked for signs of damage before each use, if damaged, replacement PPE must be obtained before doing this procedure.

NOTE:

All Permit To Work (PTW) documents must be kept for a minimum of 5 years.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Before replacing the Toe Link, make sure to have followed the diagnosis and testing procedure.
Refer to: SUSPENSION ARMS
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

This procedure involves work on components associated with the HV system. Only technicians qualified to Electric Vehicle Competent Person (EVCP) level or higher are allowed to do this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle (EV) Safety Rules.

Refer to: ELECTRIC VEHICLE SAFETY RULES
NOTE: Steps 4 - 6 are only applicable to the right side component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

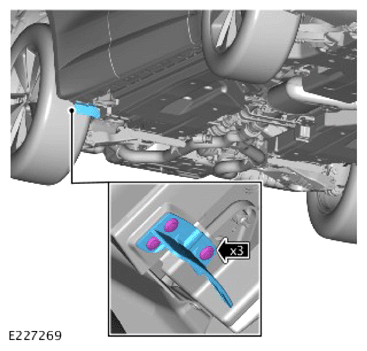

- Remove the 3 fasteners.
- Remove the rear wheel arch air deflector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

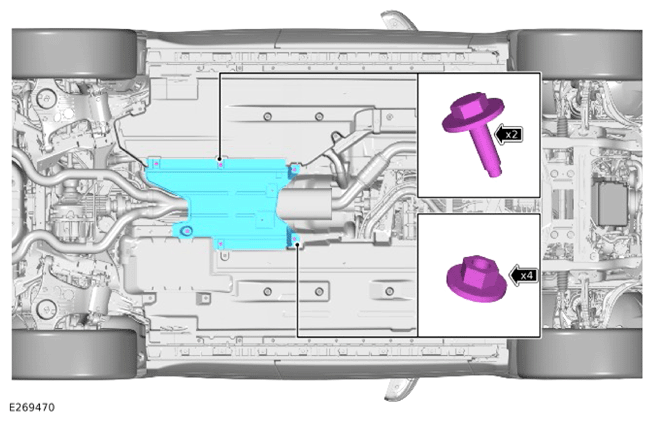

- Remove the 4 nuts.
- Remove the 2 bolts.
- Remove the rear center undershield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

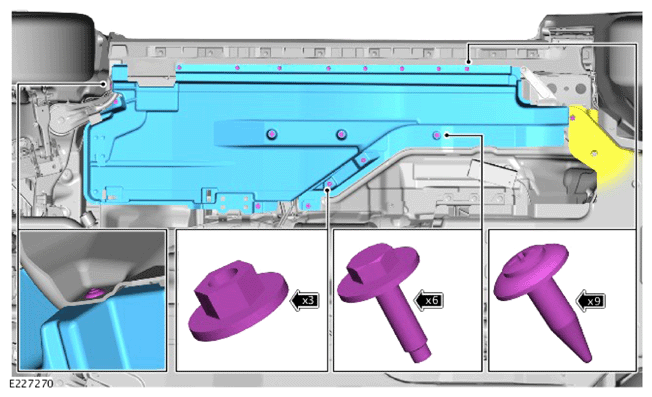

- Remove the 9 fasteners.
- Remove the 3 nuts.
- Remove the 6 bolts.
- Remove the right undershield.
NOTE: Steps 7 - 9 are only applicable to the left side component.

Power Down the HV system. Only technicians qualified to EVAP level or higher are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the EV Safety Rules.

Refer to: PHEV POWER DOWN/UP - COMPLETE VEHICLE - PATHFINDER
Refer to HV electrical connector operation and inspection document before disconnecting any HV electrical connectors.
Remove the HV integrated box.
Refer to: HIGH VOLTAGE INTEGRATED BOX
NOTE: Steps 10 - 11 are applicable to both components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

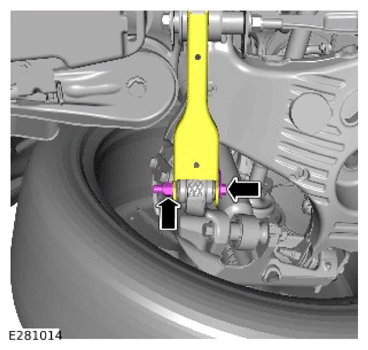

Remove and discard the nut and bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

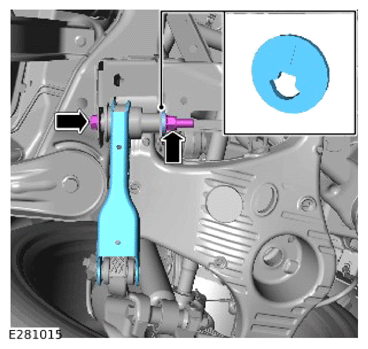

- Remove the nut and bolt.
- Remove the washer.
- Remove the toe link.
