Toe Link (G1899822): Removal

CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Before replacing the Toe Link, make sure to have followed the diagnosis and testing procedure.
Refer to: SUSPENSION ARMS
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
CAUTION: Discard the nut and bolt.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

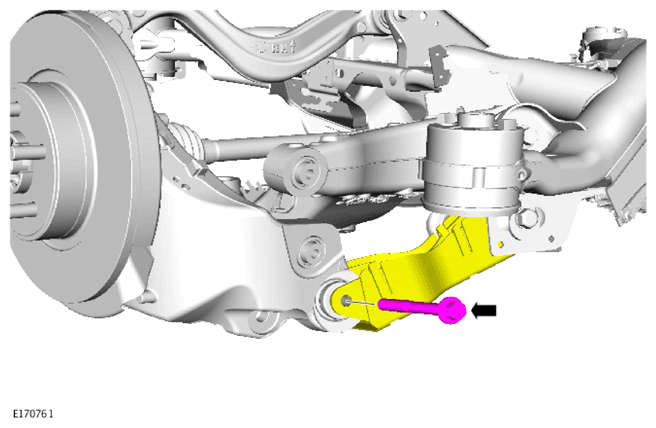

Disconnect the toe link from the wheel knuckle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

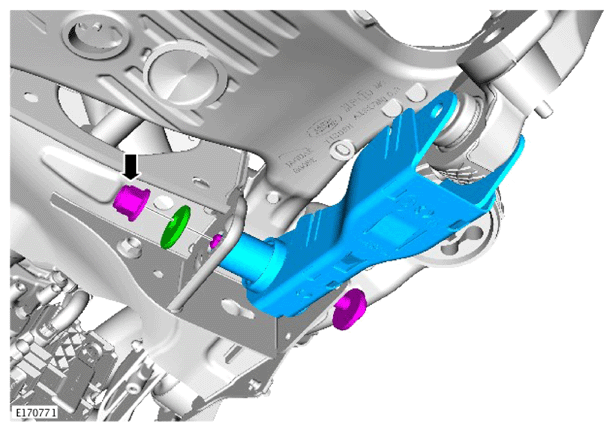

Disconnect the toe link from the subframe.
