Tie Rod - V8 S/C 5.0L Petrol (G2263805): Removal
CAUTION:
Nuts and bolts must be tightened with vehicle at normal ride height.
NOTE:
- This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for right side components, left side components are similar.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING

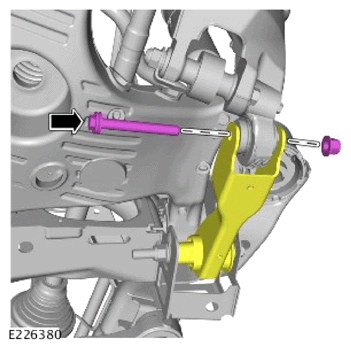

- Remove and discard the tie-rod nut and bolt.

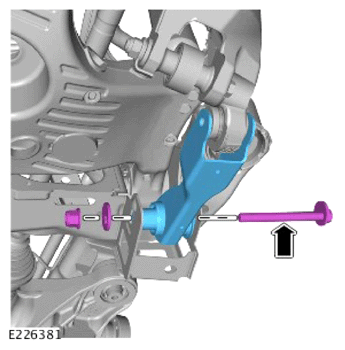

- Remove and discard the tie-rod nut and bolt.

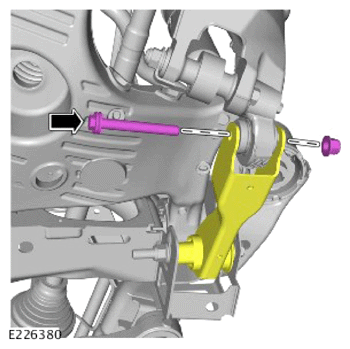

- Remove the tie-rod.
