Tie Rod - V8 S/C 5.0L Petrol (G2263805): Notes

64.25.21 TOE LINK - RENEW ALL DERIVATIVES 0.20
64.25.22 TOE CONTROL LINK - VEHICLE SET - RENEW ALL DERIVATIVES 0.20

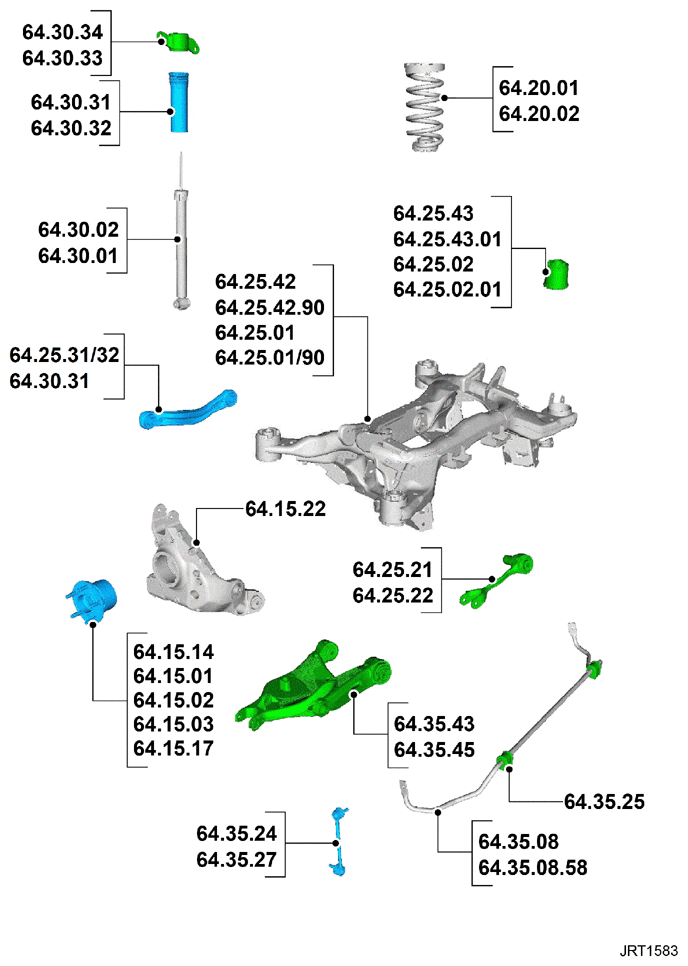

G15610681Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
64.25.22.58 TOE CONTROL LINK - VEHICLE SET - RENEW - SVR ALL DERIVATIVES 0.20
G15610682Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
64.25.21.58 TOE CONTROL LINK - RENEW - SVR ALL DERIVATIVES 0.20

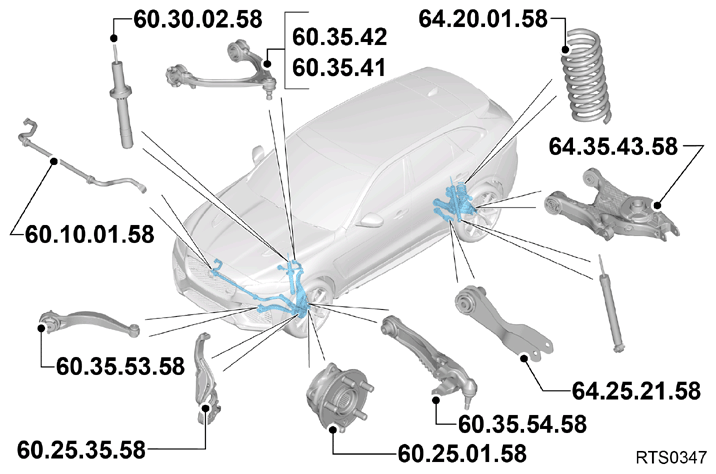

G15610683Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
