Rear Wheel Bearing (G1899821): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustration showing certain components removed to provide extra clarity.

Before replacing the Rear Wheel Bearing, make sure to have followed the diagnosis and testing procedure.
Refer to: WHEEL BEARINGS
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the wheel knuckle.
Refer to: WHEEL KNUCKLE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

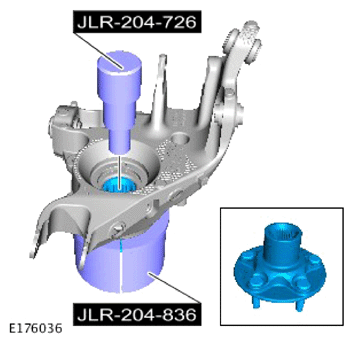

Using the special tools, remove the hub.

Special Tool(s): 204-726 , JLR-204-836

General Equipment: Hydraulic press
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

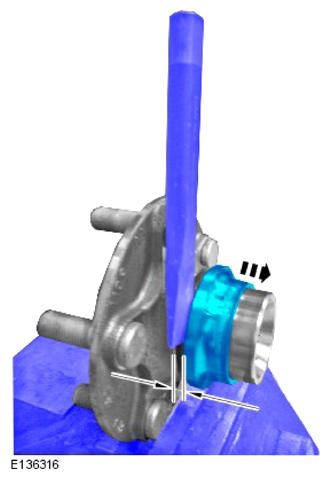

Using suitable tools, move the bearing race until a suitable gap opens up.

General Equipment: Vise

General Equipment: Chisel
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

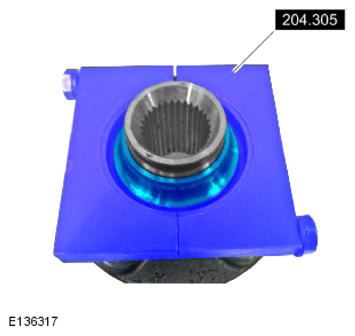

Using the special tool, remove the bearing race from the hub.

Special Tool(s): 204-305

General Equipment: Hydraulic press
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

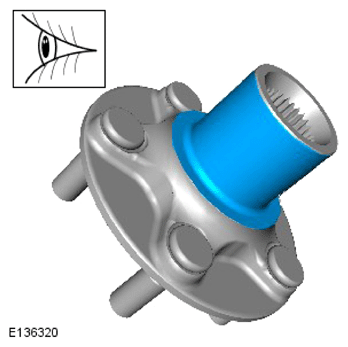

Clean and inspect the hub for deterioration.
CAUTION: Note the orientation of the circlip prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

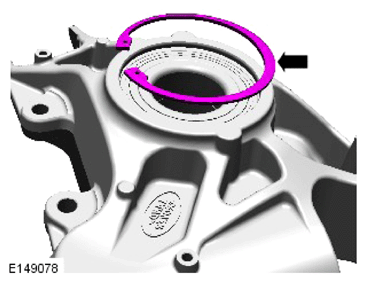

Remove the circlip.
NOTE: Note the orientation of the component prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

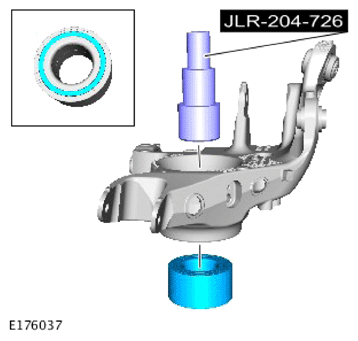

Using the special tool, remove the wheel bearing from the wheel knuckle.

Special Tool(s): 204-726

General Equipment: Hydraulic press
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

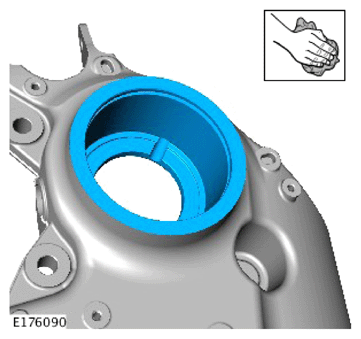

Clean and inspect the knuckle for deterioration.
