Rear Stabilizer Bar Link (G1899820): Installation

CAUTION:
- Use a wrench on the hexagon provided to prevent the ball joint rotating.
- Make sure new nuts are installed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

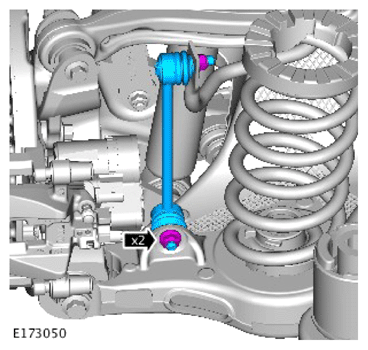

Install the stabilizer bar link and nuts.

Renew Part: Stabilizer bar link nuts Quantity: 2 .

Torque

Stage 1: 40 Nm

Stage 2: 45°
Install the rear wheel.
Refer to: WHEEL AND TIRE
