Rear Stabilizer Bar - V8 S/C 5.0L Petrol (G2263548): Removal
NOTE:
- The stabilizer bar bushes are bonded in place and do not separate from the stabilizer bar.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the rear subframe.
Refer to: REAR SUBFRAME

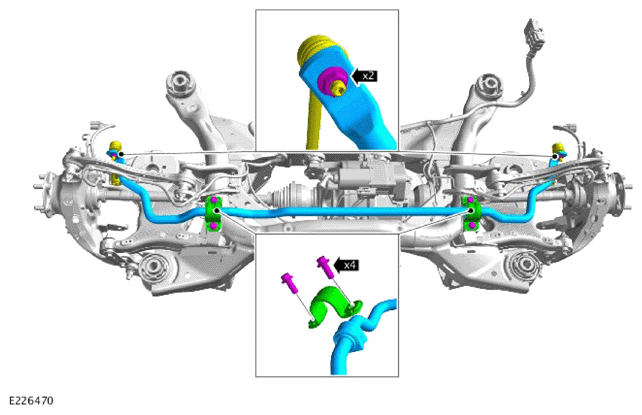

- Remove and discard the 2 nuts from the rear stabilizer bar link.
- Remove the 4 bolts.
- Remove the 2 clamps.
- Remove the rear stabilizer bar.
