Rear Stabilizer Bar (G1899819): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

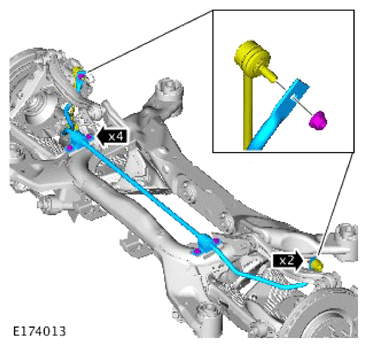

- Install the ani-roll bar and retaining bolts.
  Torque : 60 Nm
- CAUTION:
  - Make sure new nuts are installed.
  - Use a wrench on the hexagon provided to prevent the ball joint rotating.
  Install the rear Stabilizer Bar Link retaining nuts.

  Renew Part: Stabilizer bar link retaining nuts Quantity: 1 .

  Torque

  Stage 1: 40 Nm

  Stage 2: 45°
Install the rear subframe.
Refer to: REAR SUBFRAME
