Rear Shock Absorber (G3261180): Removal

CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the rear wheel and tire.
Refer to: WHEEL AND TIRE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

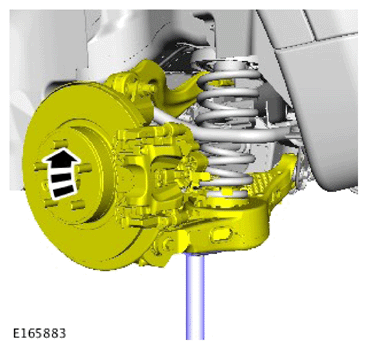

Using a suitable stand, support the lower arm.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

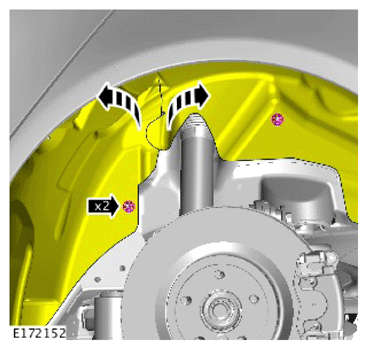

Release and reposition the fender splash shield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

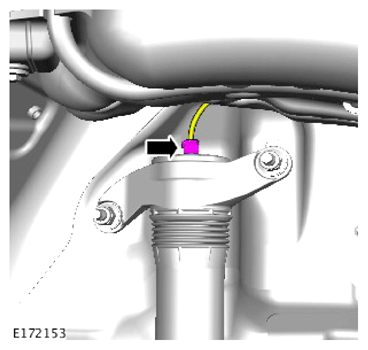

Disconnect the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

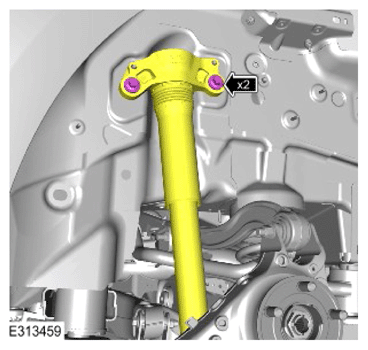

- Remove the shock absorber to body retaining nuts.
- Discard the nuts.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

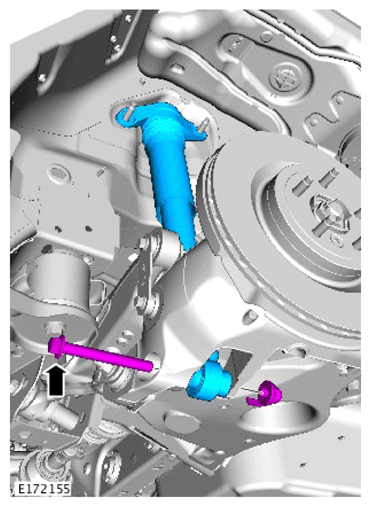

- Remove the shock absorber.
- Discard the nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

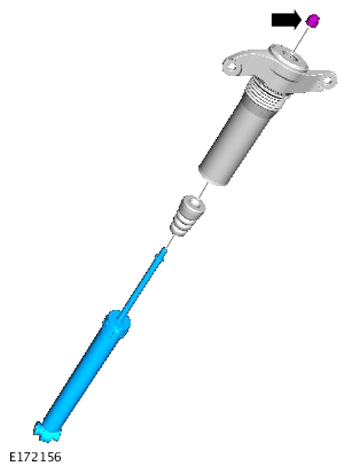

- Remove the shock absorber top mounting.
- Discard the nut.

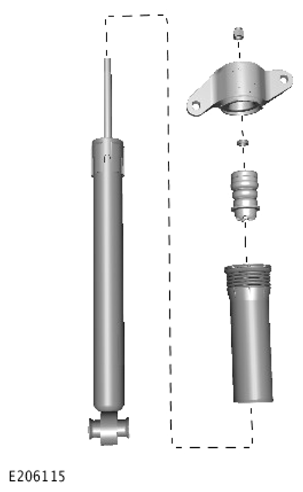

NOTE: Note the position of the components prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Inspect the components and replace if damaged or worn.
