Rear Shock Absorber (G3261180): Installation

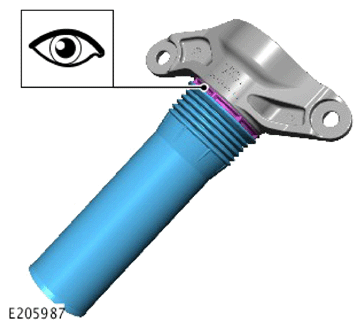

CAUTION: Make sure that the boot is correctly install.

NOTE: Install the components in the noted removal positions.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Assemble the components.
- Renew the nut.
  Renew Part: Shock absorber upper mounting nut Quantity: 1 .

  Torque : 27 Nm
- Connect the shock absorber the wheel knuckle.
- Renew the nut.
  Renew Part: Shock absorber nut Quantity: 1 .

  Torque : 170 Nm
- Connect the shock absorber to the body.
- Renew the bolts.
  Renew Part: Shock absorber upper mounting bolt Quantity: 2 .

  Torque

  Stage 1: 100 Nm

  Stage 2: Loosen 100°

  Stage 3: 60 Nm

  Stage 4: 60°
Connect the wiring harness.
Install the fender splash shield.
Install the rear wheel and tire.
Refer to: WHEEL AND TIRE
