Rear SUBFRAME Bush (G2496457): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2-post lift.
Refer to: LIFTING
Remove the rear subframe.
Refer to: REAR SUBFRAME
NOTE: Note the orientation of the bush before removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

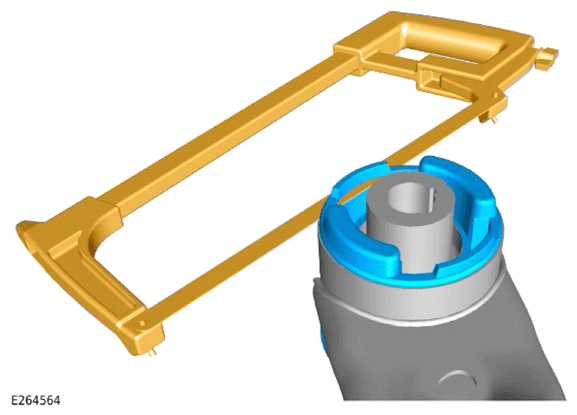

Use a suitable handsaw to remove the lip from the top of the bush.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

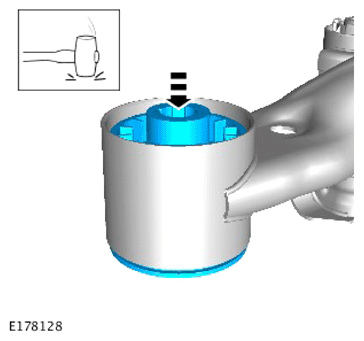

Use a suitable tool to remove the rear subframe bush.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

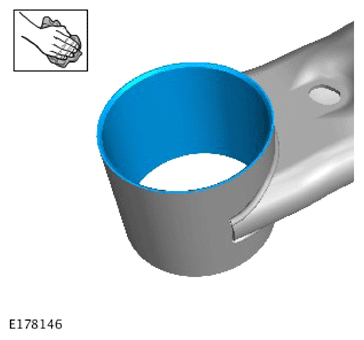

- Clean the rear subframe where illustrated.

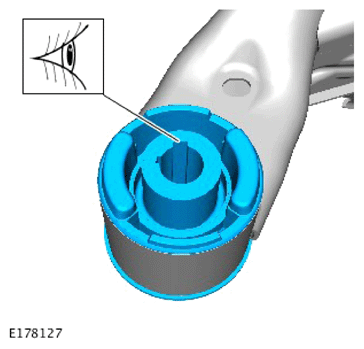

- Inspect the rear subframe for wear.
