Rear SUBFRAME Bush (G2496457): Installation

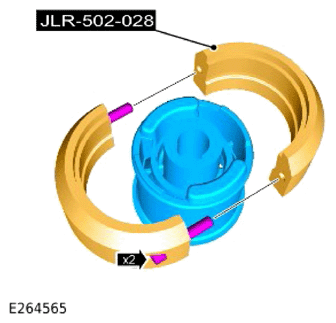

  1. G15610730Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool to the rear subframe bush.

    Special Tool(s): JLR-502-028

  2. NOTE: Make sure that the new bush is correctly oriented before installation.

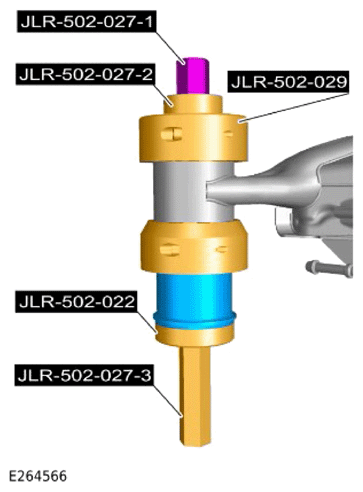

    G15610731Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tools to install the new bush to the rear subframe.

    Special Tool(s): JLR-502-027-3  , JLR-502-022  , JLR-502-029  , JLR-502-027-2  , JLR-502-027-1

  3. CAUTION: Failure to follow this instruction may result in damage to the component.

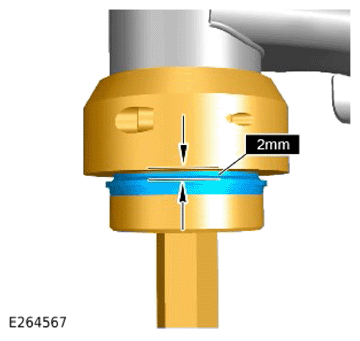

    G15610732Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Do not allow the lower edge of the rear subframe bush to contact the special tool. Make sure a 2 mm gap is visible.

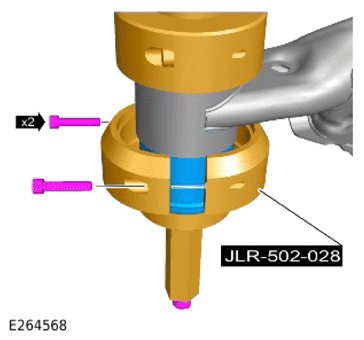

  4. G15610733Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tool.

    Special Tool(s): JLR-502-028

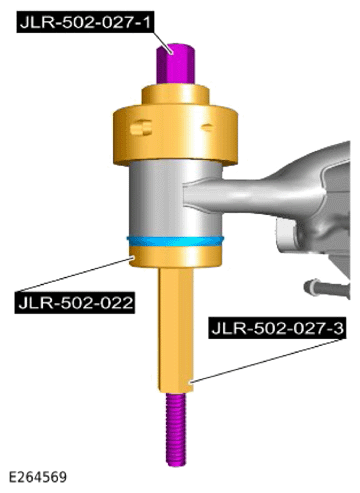

  5. G15610734Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tools to fully install the rear subframe bush.

    Special Tool(s): JLR-502-027-1  , JLR-502-022  , JLR-502-027-3

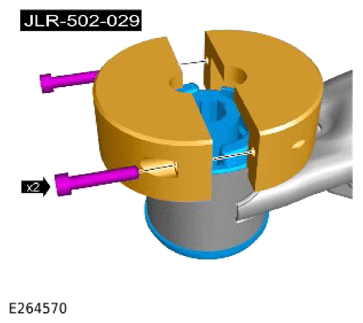

  6. G15610735Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tool.

    Special Tool(s): JLR-502-029

  7. Install the rear subframe.

    Refer to: REAR SUBFRAME

  8. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
