Component Location

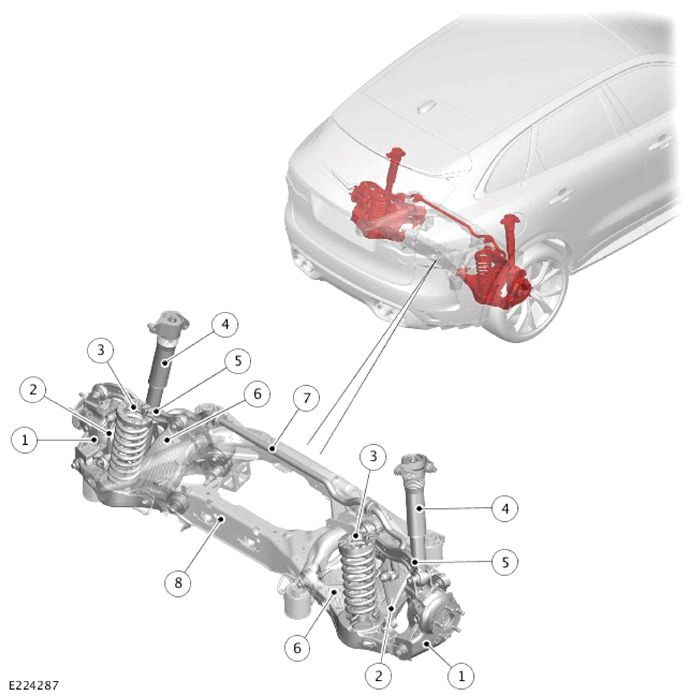

G15610556Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Wheel knuckle and wheel hub assembly
2 Stabilizer bar link
3 Coil spring
4 Shock absorber
5 Upper control arm
6 Lower control arm
7 Stabilizer bar
8 Rear subframe
