Upper Control Arm
NOTE:
The rear left suspension components are shown, the rear right suspension components are similar.

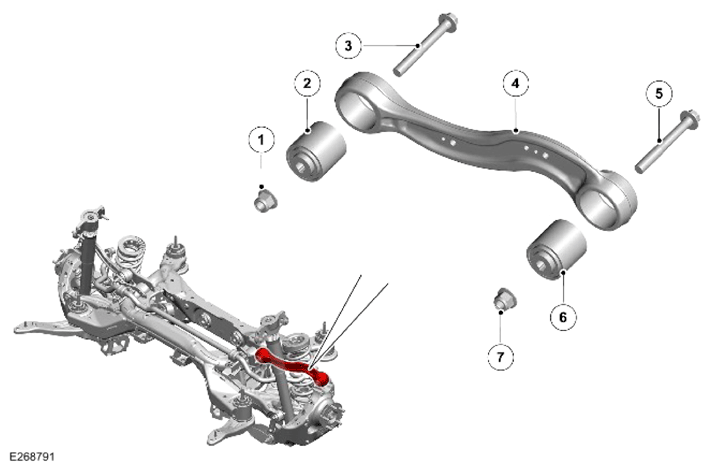

| ITEM | DESCRIPTION |
|---|---|
| 1 | Nut - Upper control arm to subframe |
| 2 | Bush - Upper control arm to subframe |
| 3 | Bolt - Upper control arm to subframe |
| 4 | Upper control arm |
| 5 | Bolt - Upper control arm to wheel knuckle |
| 6 | Bush - Upper control arm to wheel knuckle |
| 7 | Nut - Upper control arm to wheel knuckle |
The Upper control arm is made from forged aluminum with both ends of the arm having a bush housing machined in the arm. A bush is pressed into each of the housings. The inner end locates in brackets on the upper section of the subframe. The outer end of the arm locates in lugs at the top of the wheel knuckle.
