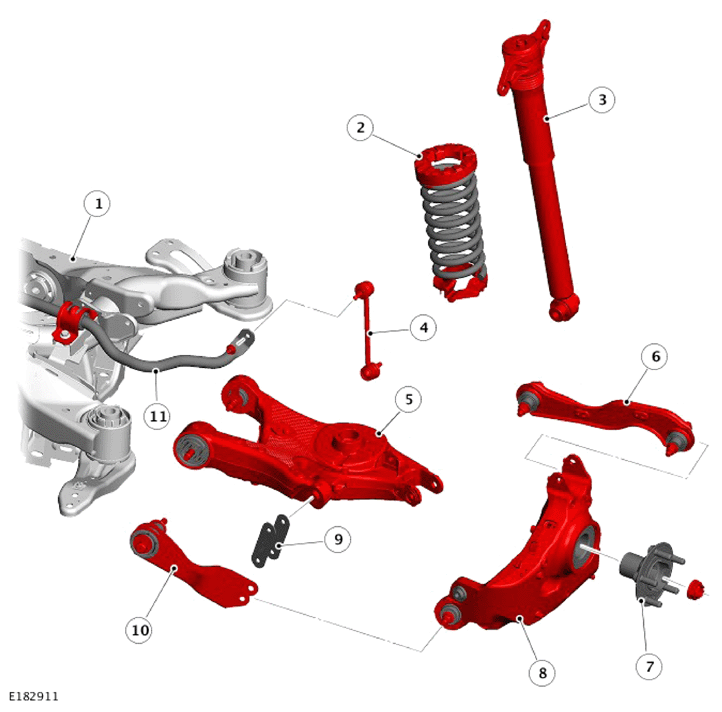

Suspension Components
NOTE:
The rear left suspension components are shown, the rear right suspension components are similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Subframe |
| 2 | Spring |
| 3 | Shock absorber |
| 4 | Stabilizer bar link |
| 5 | Lower control arm |
| 6 | Upper control arm |
| 7 | Wheel hub |
| 8 | Wheel knuckle |
| 9 | Integral link - Lower control arm to wheel knuckle |
| 10 | Tie arm |
| 11 | Stabilizer bar |
The vehicle has a fully independent suspension system with an advanced new multi-link design. The new suspension delivers enhanced dynamics and refinement together with a compact layout providing increased vehicle interior space, enabling a spacious luggage compartment.
The rear suspension is specifically developed to offer responsive and agile handling together with supreme ride quality and refinement.
Both the rear suspension lower control arm and wheel knuckle are produced from thin-walled hollow aluminum castings, delivering additional weight savings.
The rear suspension is mounted on an optimized steel subframe which is light and stiff for optimum steering response, chassis performance and refinement.
