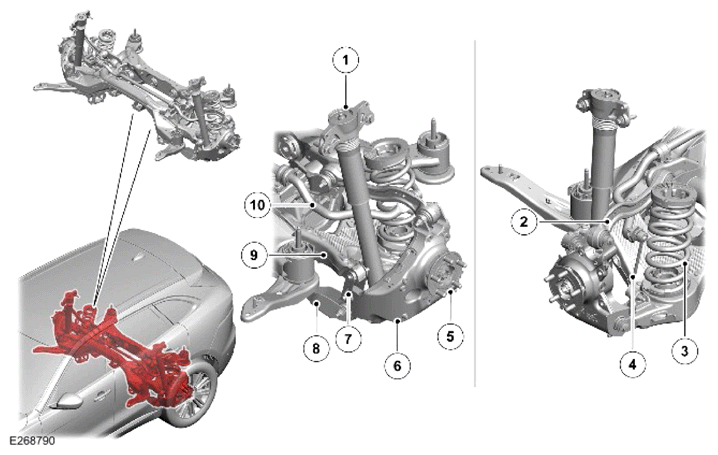

Component Location - 1 Of 1
NOTE:
The rear left components are shown. The rear right components are similar.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Shock absorber |
| 2 |
Upper control arm |
| 3 |
Spring |
| 4 |
Stabilizer bar link |
| 5 |
Wheel hub |
| 6 |
Wheel knuckle |
| 7 |
Integral link - Lower control arm to wheel knuckle |
| 8 |
Tie arm |
| 9 |
Lower control arm |
| 10 |
Stabilizer bar |
