Exhaust Rear Section
WARNING: This page is about a different variant/trim than selected.

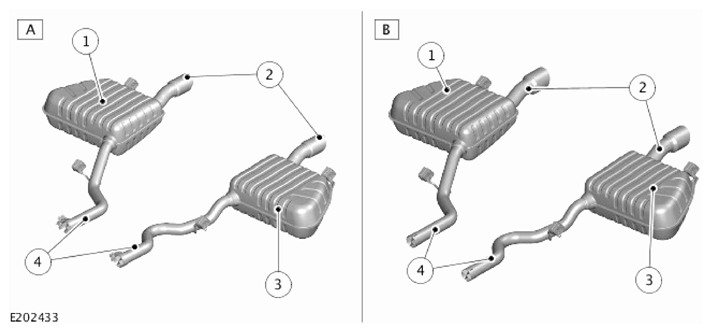

| ITEM | DESCRIPTION |
|---|---|
| A | Exhaust system rear section - Ingenium I4 2.0L Petrol 250PS |
| B | Exhaust system rear section - Ingenium I4 2.0L Petrol 300PS |
| 1 | Rear right silencer |
| 2 | Outlet pipe (quantity 2) |
| 3 | Rear left silencer |
| 4 | Inlet pipe (quantity 2) |
The exhaust rear section is divided into right side and left side rear silencer assemblies. The exhaust gases are expelled from each rear silencer via a single outlet pipe.
There are 2 different tailpipe finishers available depending on the engine specification:
- Ingenium I4 2.0L Petrol 250PS tailpipe finisher diameter is 75 mm.
- Ingenium I4 2.0L Petrol 300PS outlet tailpipe finisher diameter is 84 mm.
The outlet pipes direct the exhaust gases through a designated tunnel of the rear bumper.
Each side of the exhaust rear section is supported by 2 mounting rubbers:
- A mounting rubber is attached to a hanger bracket welded on the side of the rear subframe.
- The other is attached to a hanger bracket welded to the vehicle body.
