Exhaust Center Section
WARNING: This page is about a different variant/trim than selected.

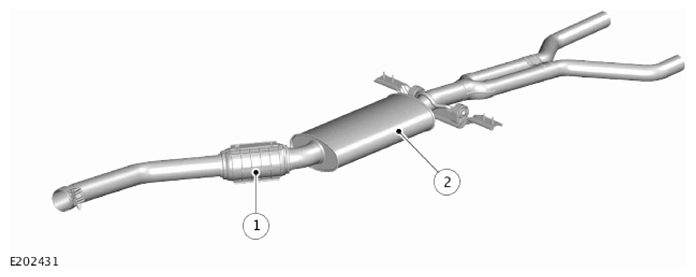

| ITEM | DESCRIPTION |
|---|---|
| 1 | Flexible coupling |
| 2 | Center silencer |
The exhaust center section comprises of an inlet pipe, which incorporates a flexible coupling and a center silencer and 2 outlet pipes.
The inlet pipe of the exhaust center section is secured to the exhaust front section outlet pipe with a clamp.
The exhaust center section is attached to the body with 2 mounting rubbers which are located on hanger brackets that are welded to the exhaust system. The mounting rubbers are bolted to the front cross member, which are bolted to the underside of the vehicle body.
