Right Variable Valve Timing Oil Control Solenoid (G2244165): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Evenly and progressively, install the variable valve timing solenoids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

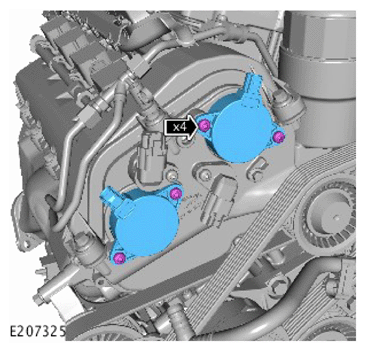

- Install the 2 variable valve timing solenoids.
- Install the 4 variable valve timing solenoid retaining bolts.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

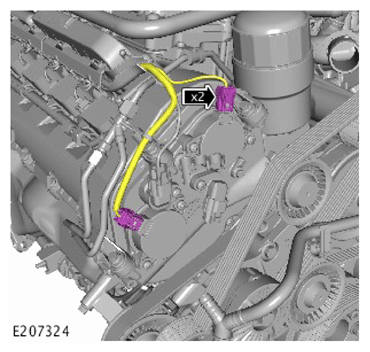

Connect the 2 variable valve timing solenoid electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

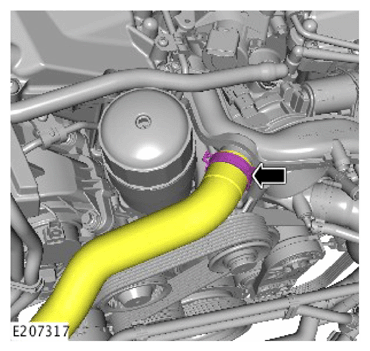

Secure the coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

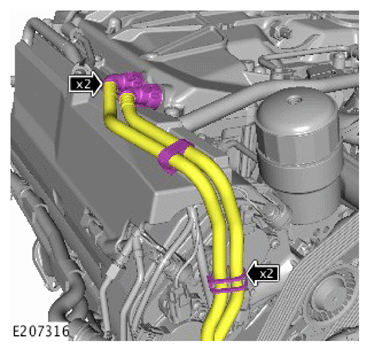

- Connect the 2 right supercharger coolant hose retaining clips.
- Secure the 2 retaining clips.
Install the right air cleaner outlet intermediate pipe.
Refer to: AIR FILTER OUTLET PIPE T-CONNECTOR
Vacuum fill the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Install the hood.
Refer to: HOOD - INGENIUM I4 2.0L DIESEL AJ21/INGENIUM I4 2.0L PETROL/TDV6 3.0L DIESEL/V6 S/C 3.0L PETROL
