Powertrain Control Module (G2244159): Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: This step is only required if previously removed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

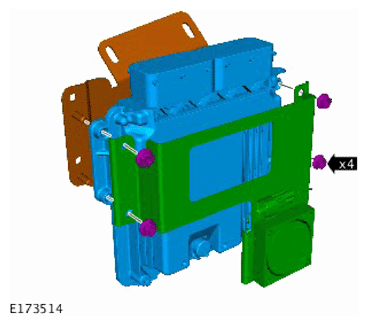

- Install the Powertrain Control Module (PCM) bracket.
- Install and tighten the 4 nuts.
  Torque : 7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

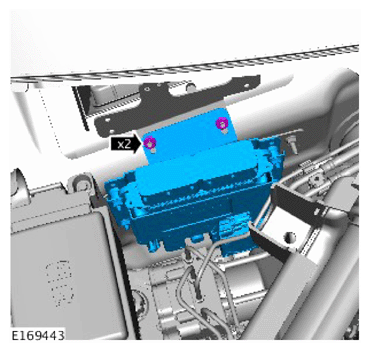

- Install the PCM.
- Install and tighten the 2 nuts.
  Torque : 7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

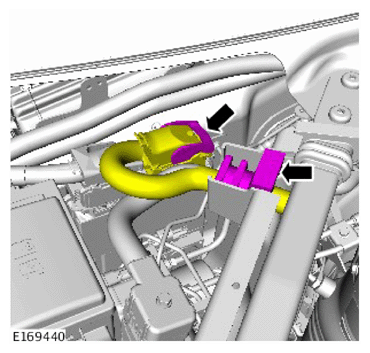

Connect the PCM electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

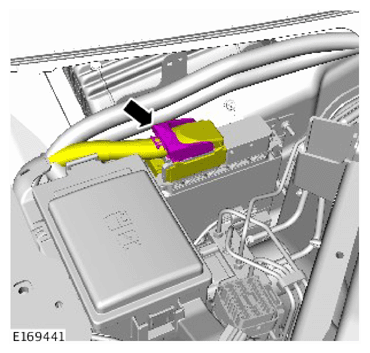

- Connect the PCM electrical connector.
- Install and secure the wiring harness in the correct position.
Install the cowl panel.
Refer to: COWL PANEL
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
NOTE:
- This step is only required if a new component is installed.
- SRO to be claimed separately.
- Use the Jaguar Land Rover (JLR) approved diagnostic equipment to configure the new module.
  General Equipment: Jaguar Land Rover approved diagnostic equipment
- Follow all on-screen instructions to complete this task.
