Post Catalyst Heated Oxygen Sensor (G2244160): Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

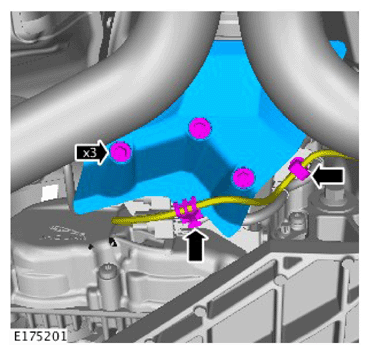

  2. G15622744Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 9 Nm

  3. NOTE: RH illustration shown, LH is similar.

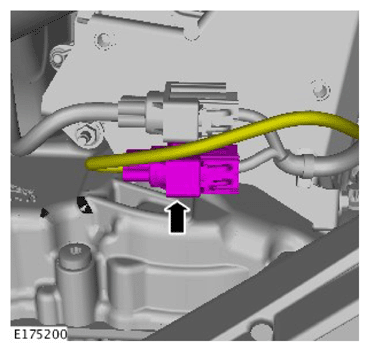

    G15622745Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

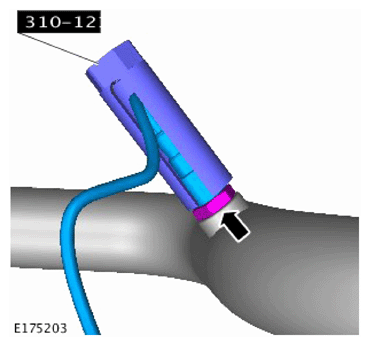

  4. G15622746Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 310-121
