Post Catalyst Heated Oxygen Sensor (G2244160): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION:
- Make sure that the mating faces are clean and free of corrosion and foreign material.
- Make sure the anti-seize compound does not contact the HO2S tip.
- If accidentally dropped or knocked install a new sensor.
NOTE: If the original sensor is to be installed, apply lubricant meeting specification ESE-M12A4-A to the thread of the sensor.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

To install, reverse the removal procedure.

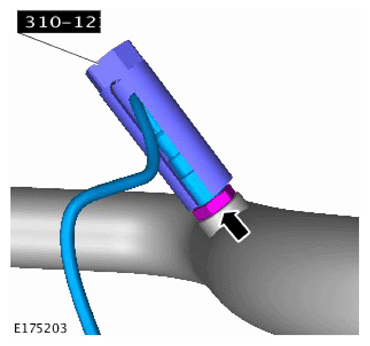

Special Tool(s): 310-121

Torque : 48 Nm
