Mass Air Flow Sensor (G2244158): Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: The ignition must be set to the OFF position before completing the following procedure.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains illustrations for left side components, right side components are similar.

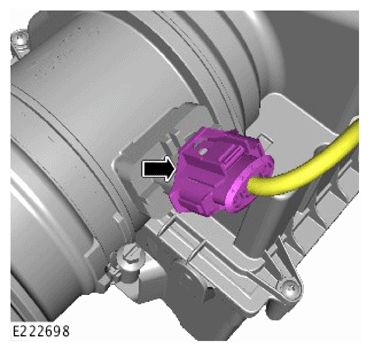

  1. G15622724Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector from the Mass Air Flow (MAF) sensor.

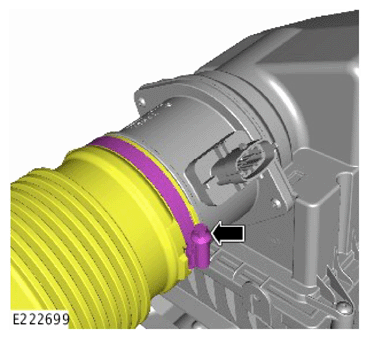

  2. G15622725Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the clamp.
    • Release the clean air duct from the MAF  sensor.

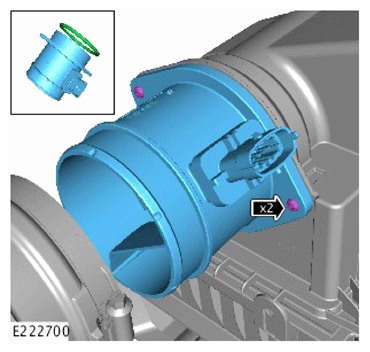

  3. G15622726Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 screws.
    • Remove the MAF  sensor.
    • Remove and discard the O-ring seal.
