Manifold Absolute Pressure Sensor (G2244157): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the secondary bulkhead left outer panel.
Refer to: SECONDARY BULKHEAD LEFT OUTER PANEL - V8 S/C 5.0L PETROL
Remove the secondary bulkhead left inner panel.
Refer to: SECONDARY BULKHEAD LEFT INNER PANEL - V8 S/C 5.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

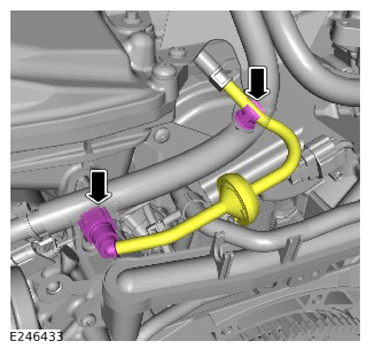

- Release the vacuum pipe from the clip.
- Disconnect the vacuum pipe.
- Reposition the vacuum pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

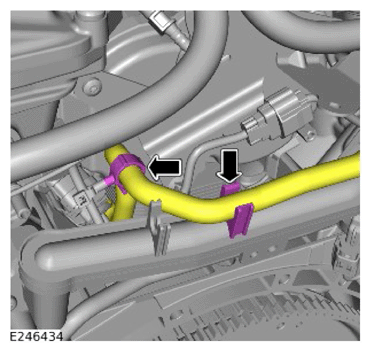

Release the vacuum pipe from the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

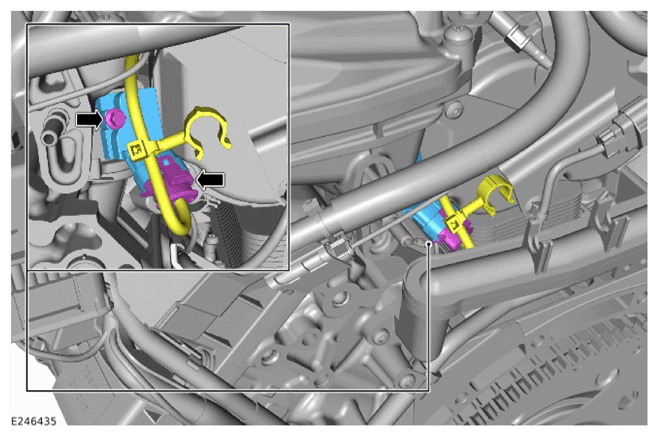

- Disconnect the electrical connector.
- Remove the bolt.
- Remove the Manifold Absolute Pressure (MAP) sensor.
