Left Variable Valve Timing Oil Control Solenoid (G2244164): Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: Be prepared to collect escaping fluids.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Remove the thermostat housing.

    Refer to: THERMOSTAT HOUSING

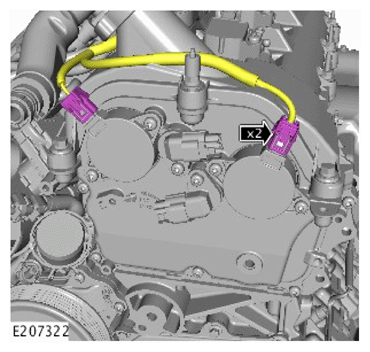

  3. G15622758Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the 2 electrical connectors.

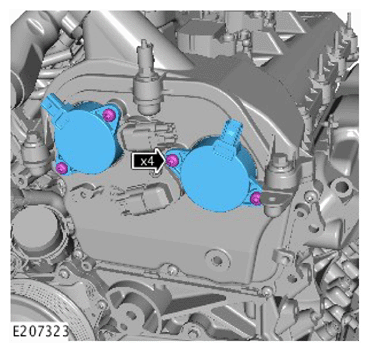

  4. G15622759Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the intake and exhaust variable valve timing (VVT) solenoids.
