Left Camshaft Position Sensor (G2244145): Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
Be prepared to collect escaping fluids.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the thermostat housing.
Refer to: THERMOSTAT HOUSING

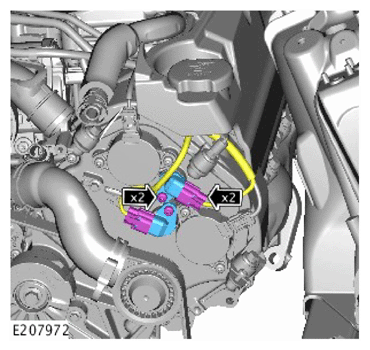

- Disconnect the 2 electrical connectors.
- Remove the 2 bolts.
- Remove the 2 camshaft position sensors.
