Component Location - 3 Of 4

WARNING: This page is about a different variant/trim than selected.

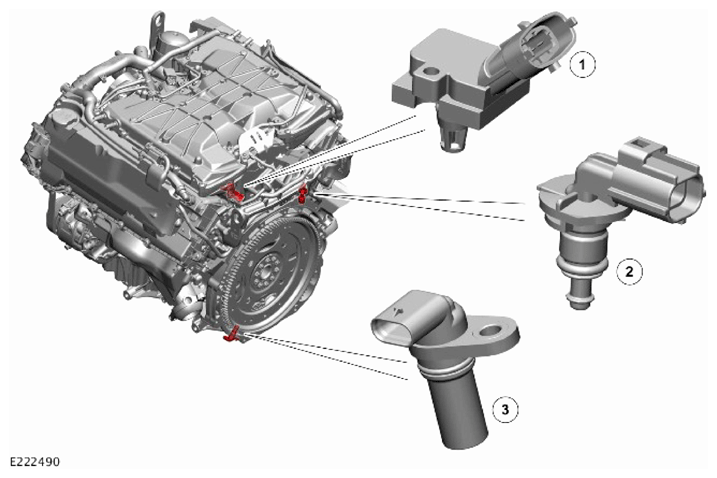

G15622657Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Manifold Absolute Pressure and Temperature (MAPT) sensor
2 Engine Coolant Temperature (ECT) sensor
3 Crankshaft Position (CKP) sensor
