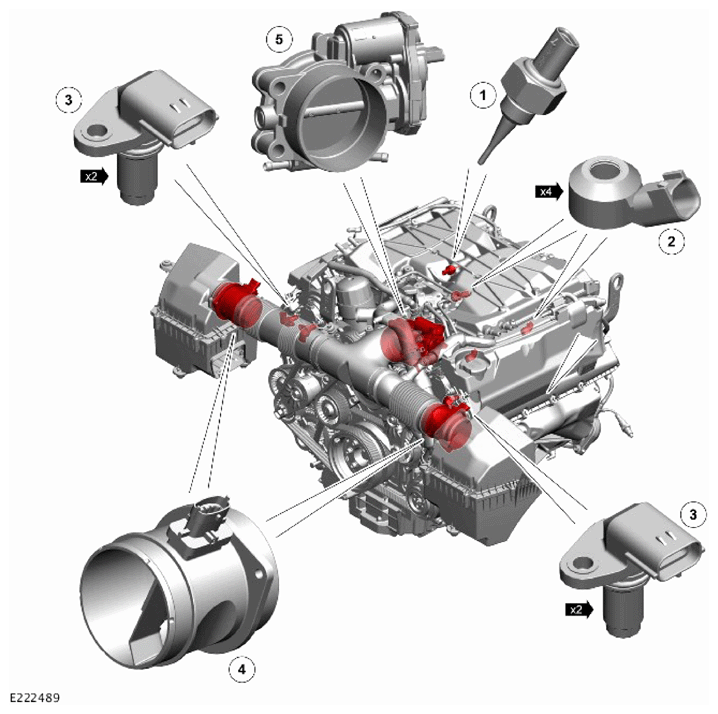

Component Location - 2 Of 4
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Charge air temperature sensor |
| 2 |
Knock sensor (4 off) |
| 3 |
Camshaft Position (CMP) sensors (4 off) |
| 4 |
Mass Air Flow and Temperature (MAFT) sensor (2 off) |
| 5 |
Electric throttle |
