Crankshaft Pulley - Vehicles With: PHEV (G2756530): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the 12V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2-post lift.
Refer to: LIFTING
Remove the Belt Integrated Starter Generator (BISG) belt.
Refer to: BELT INTEGRATED STARTER GENERATOR BELT - VEHICLES WITH: PHEV (G2743728)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

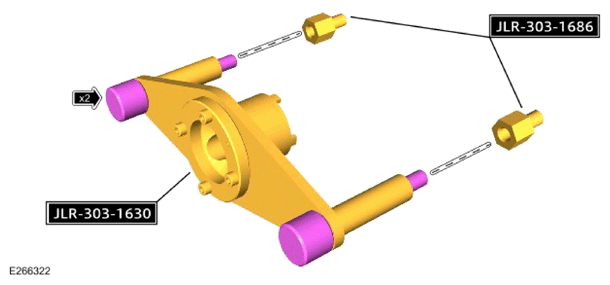

Install and tighten the 2 special tool JLR-303-1686 adapters to the special tool JLR-303-1630 crankshaft pulley locking tool.

Special Tool(s): JLR-303-1630 , JLR-303-1686
CAUTION: Make sure the special tool aligned in the locating tabs.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

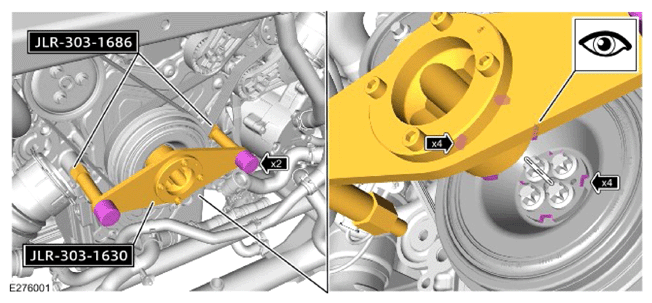

Install the special tool assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

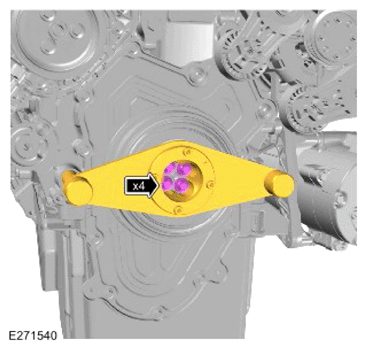

Remove and discard the 4 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

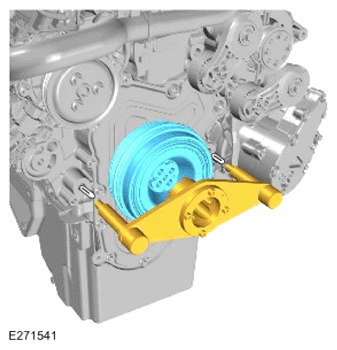

- Remove the special tool assembly.
  Special Tool(s): JLR-303-1630 , JLR-303-1686
- Remove the crankshaft pulley.
