Crankshaft Front Seal - Vehicles With: PHEV (G2756531): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the 12V system.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Raise and support the vehicle on a suitable 2-post lift.

    Refer to: LIFTING

  3. Remove the crankshaft pulley.

    Refer to: CRANKSHAFT PULLEY - VEHICLES WITH: PHEV (G2756530)

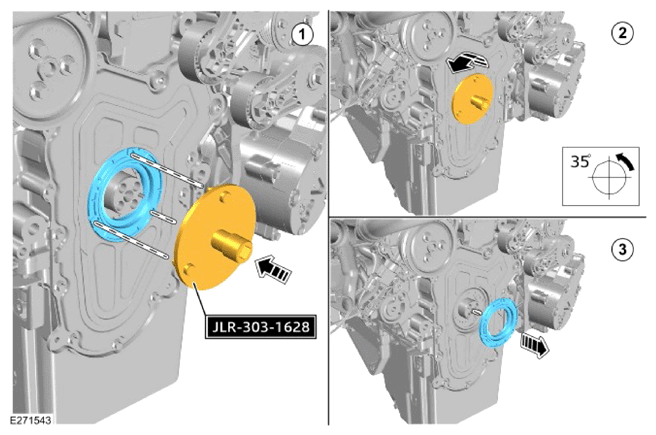

  4. G15617699Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): JLR-303-1628

    • Remove and discard the crankshaft front seal.
