Crankshaft Front Seal - Vehicles With: PHEV (G2756531): Installation
WARNING: This page is about a different variant/trim than selected.

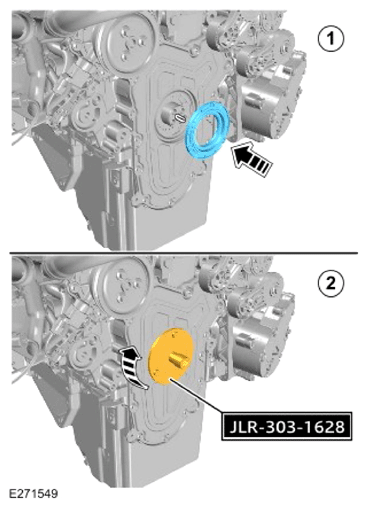

Use the special tool to install the crankshaft front seal.
Special Tool(s): JLR-303-1628
Torque : 26 Nm
- Install the crankshaft pulley.
Refer to: CRANKSHAFT PULLEY - VEHICLES WITH: PHEV (G2756530)
- Connect the 12V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
